Description

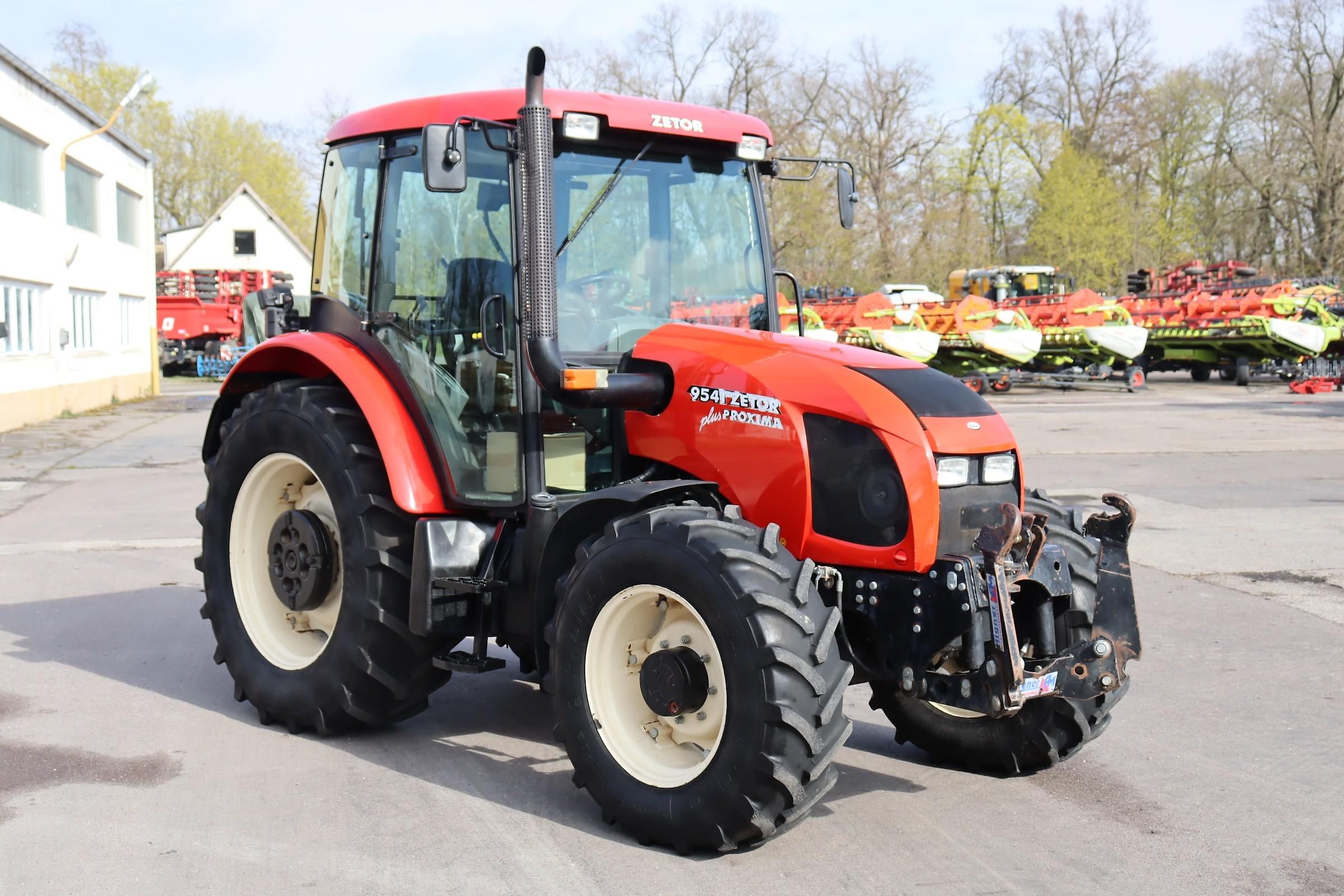

The 2007 Zetor Proxima Plus 9541 (4WD) is a robust, purely mechanical utility tractor
The "Plus" designation is highly significant—it differentiates this model from the standard Proxima by introducing an upgraded transmission with a torque multiplier, heavier-duty axles, and a higher rear lift capacity
Engine Specs
The 9541 Plus is powered by Zetor's own in-house, heavy-duty 4-cylinder turbocharged engine. It is highly regarded for its high torque backup and simple mechanical fuel injection (no complex ECUs or AdBlue)
Engine Model: Zetor 1204 (Tier II compliant)
Displacement: 4.2 litres (4,156 cc / 254 cubic inches)
Aspiration: Turbocharged and Intercooled
Rated Engine Power: 89 hp (66 kW) @ 2200 RPM
Max Torque: 391 Nm @ 1480 RPM
Torque Backup: 35% (allowing the engine to lug down under heavy load without stalling)
Fuel Tank Capacity: 120 litres
Transmission and Drivetrain
The "Plus" model's gearbox is a major upgrade over the standard base model, giving operators better speed matching for field work
Transmission Type: Mechanical synchromesh with a two-speed pneumatic Hi-Lo splitter (Powershift/torque multiplier)
Speeds: 16 Forward and 16 Reverse (4 synchronized gears in 2 ranges, multiplied by the Hi-Lo splitter)
Shuttle: Mechanical forward/reverse shuttle lever located to the left of the steering column
Maximum Road Speed: 40 km/h
Brakes: Wet multi-disc hydraulic brakes, acting on all four wheels via automatic 4WD engagement under braking
Hydraulics and PTO
System Type: Open Center hydraulic system
Pump Capacity: 50.0 litres per minute dedicated to the rear linkage and spool valves
Rear Lift Capacity: 4,150 kg (assisted by twin external lift rams, Category II 3-point hitch)
Remote Valves: 2 standard double-acting mechanical spool valves (4 outlets), expandable to 3 valves
PTO Speeds: Independent or ground-speed dependent 540 / 1000 RPM with a mechanically assisted electro-hydraulic engagement switch
Dimensions and Operating Weights
Wheelbase: 2.31 metres (90.9 inches)
Overall Length: 3.89 metres (153.1 inches)
Overall Height: 2.71 metres (106.7 inches) to the top of the cab.
Base Operating Weight: Approximately 4,050 kg (8,928 lbs) without ballast or loader.
Maximum Permissible Weight: 5,500 kg (12,125 lbs).
Cab and Comfort
Cab Features: Standard panoramic safety cab with integrated heating and Air conditioning
Controls: Ergonomic layout with the mechanical spool levers and hitch controls situated to the right of the operator's seat
Nice tractor with few hours / Service done / Ready to work
We can professionally arrange competitive delivery for any machine, to any address in United Kingdom, Ireland, North Ireland, Scotland and Europe at very competitive rates with our own transport. We take the utmost care to ensure that your vehicle is transported in a safe and fast way.
For quotations or any queries please CONTACT US !
