Description

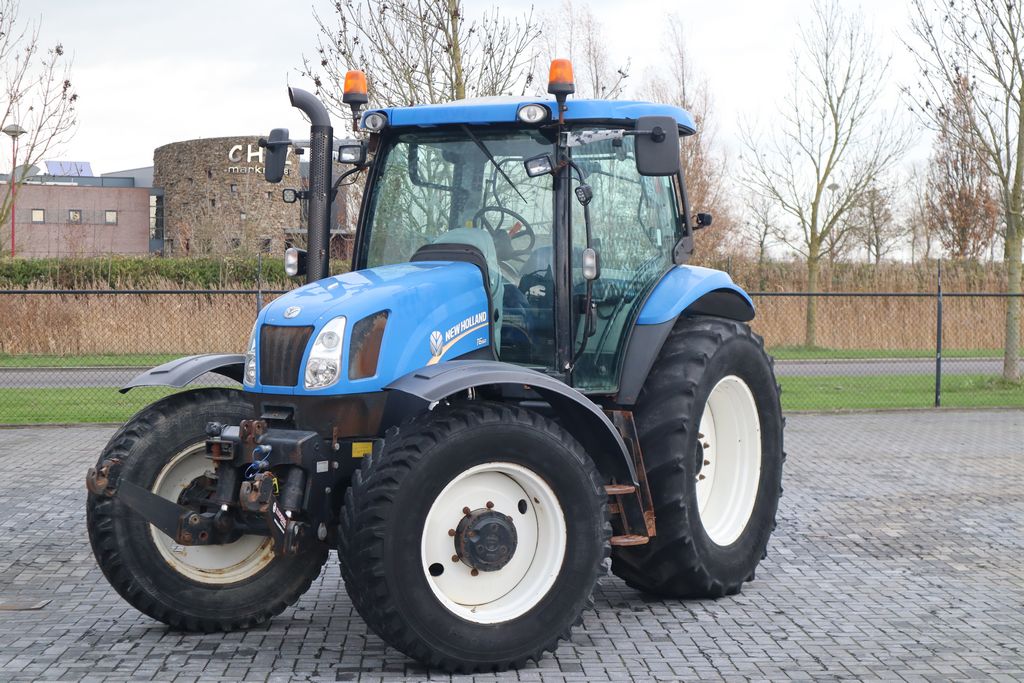

The 2013 New Holland T6.160 is a highly popular mid-range row-crop tractor built in Basildon, England
Powered by a 4.5-litre, 4-cylinder FPT engine
Engine and Performance
Engine Manufacturer/Model: FPT (Fiat Powertrain Technologies) NEF
Cylinders / Displacement: 4 cylinders, 4.5 L (4,485 cm³) with 4 valves per cylinder [1]
Aspiration: Turbocharged, intercooled, Common Rail Electronic injection [1]
Standard Engine Power: 131 hp (96 kW) at 2,200 RPM [1]
Max Power (with EPM Boost): 163 hp (120 kW) for transport and demanding PTO work [1]
Max Torque: 590 Nm (676 Nm with boost) at 1,500 RPM [1]
Emissions Standard: Tier 4A / Stage IIIB using ECOBlue™ Selective Catalytic Reduction (SCR / AdBlue) [1]
Transmission Options
Electro Command (Semi-Powershift): 16x16 or 17x16 (Economy) transmission with 4 powershift steps across 4 ranges.
Dual Command: 24x24 setup with a 2-speed powershift splitter.
Auto Command (CVT): Premium hydro-mechanical continuously variable transmission providing stepless acceleration from 0.01 to 40 or 50 km/h.
Shuttle: Left-hand electro-hydraulic column-mounted Powershuttle.
Hydraulics and Hitch
Hydraulic System Type: Open-centre standard on basic builds; Closed-Centre Load-Sensing (CCLS) on high-spec models.
Standard Hydraulic Flow: 80 L/min fixed-displacement gear pump.
Premium Hydraulic Flow: 113 L/min (29.8 gpm) variable-displacement axial piston pump.
Rear Hitch Type: Category II/III three-point linkage with electronic draft control (EDC).
Rear Lift Capacity: 7,864 kg (17,337 lbs) maximum lift capacity at ball ends.
Rear PTO Speeds: 540 / 540E / 1,000 RPM standard (electro-hydraulically engaged).
Dimensions and Weights
Operating Weight: Approx. 4,890 kg to 5,050 kg unladen depending on spec
Maximum Permissible Weight: 9,000 kg (19,841 lbs)
Wheelbase: 263 cm (103.4 inches)
Fuel Capacity: 175 litres+ 37 litres AdBlue
Typical UK Tyres: Front 420/70 R28, Rear 520/70 R38
Operator Station and Cab Specifications
Horizon™ Cab: Features dual wide-opening doors, automatic climate control, a completely flat floor, and a low noise level of 69 dB.
Trim Levels: Ranged from basic mechanical setups to the premium SideWinder™ II armrest layout on Auto Command models, which integrated the CommandGrip™ multi-function joystick and IntelliView™ touchscreen display.
Suspension Systems: Often equipped with Terraglide™ front axle suspension and Comfort Ride™ mechanical cab suspension for enhanced road comfort.
Complete with many options, well maintained and ready to go
Ready for the work!
