Description

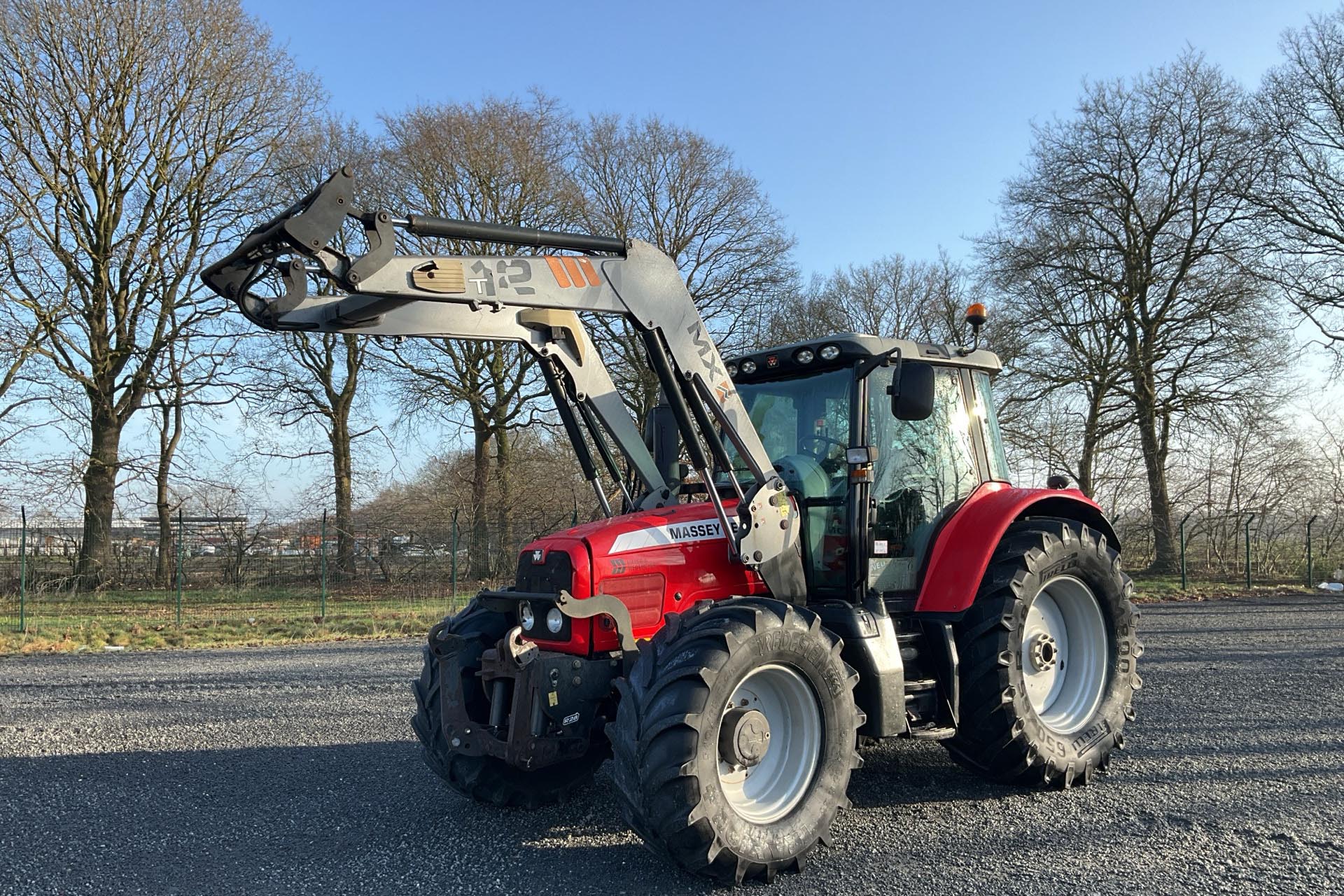

The 2006 Massey Ferguson 6480 is a highly regarded, mid-to-high horsepower row-crop tractor.
It is exceptionally popular in the UK for its reliability, balanced weight distribution, and excellent draft power.
Engine Specs
The 2006 model year features a 6.0-litre, 6-cylinder Perkins turbo-diesel engine (Tier 2 compliant)
Engine Model: Perkins 1106C-E60TA (Electronic Fuel Injection)
Displacement: 6.0 litres (365 cubic inches)
Rated Engine Power: 145 hp (108 kW) @ 2200 RPM
Max Engine Power (ISO): 155 hp (114 kW)
Max Torque: 649 Nm @ 1400 RPM
Aspiration: Turbocharged and Intercooled
Transmission and Drivetrain
Dyna-6 (Late 2006 - Most Common): 24 forward and 24 reverse speeds (6 powershift speeds in 4 ranges), allowing entirely clutchless shifting within and between ranges under load
Shuttle: Left-hand Power Control lever (Forward/Reverse power shuttle)
Maximum Speed: Available in either 40 km/h or upgraded 50 km/h Eco variants
Hydraulics and PTO
System Type: Closed-Center Load Sensing (CCLS)
Pump Flow Rate: 110 litres per minute (29.1 GPM)
Rear Lift Capacity: 7,100 kg to 8,000 kg (depending on ram size specification)
Remote Valves: 2 to 4 mechanical or spool valves
PTO Speeds: Independent 540 / 540E / 1000 / 1000E RPM with electronic engagement
Dimensions and Capacities
Wheelbase: 2.78 metres (109.4 inches)
Operating Weight: Approx. 5,740 kg (12,654 lbs) base weight without ballast
Fuel Tank Capacity: 270 litres (or upgraded 320-litre tank option)
Front Axle: 4WD (Double Traction) with standard auto-locking differential lock
🎛️ Cab Comfort and Options
Cab Series: Standard high-visibility cab with Autotronic monitoring systems
Suspension Options: Optional SMS (Suspended Motorway System) front axle suspension and mechanical or pneumatic cab suspension
Braking: Hydraulic wet disc brakes (Air brakes were a standard option on 50 km/h models)
Ready to work
