Description

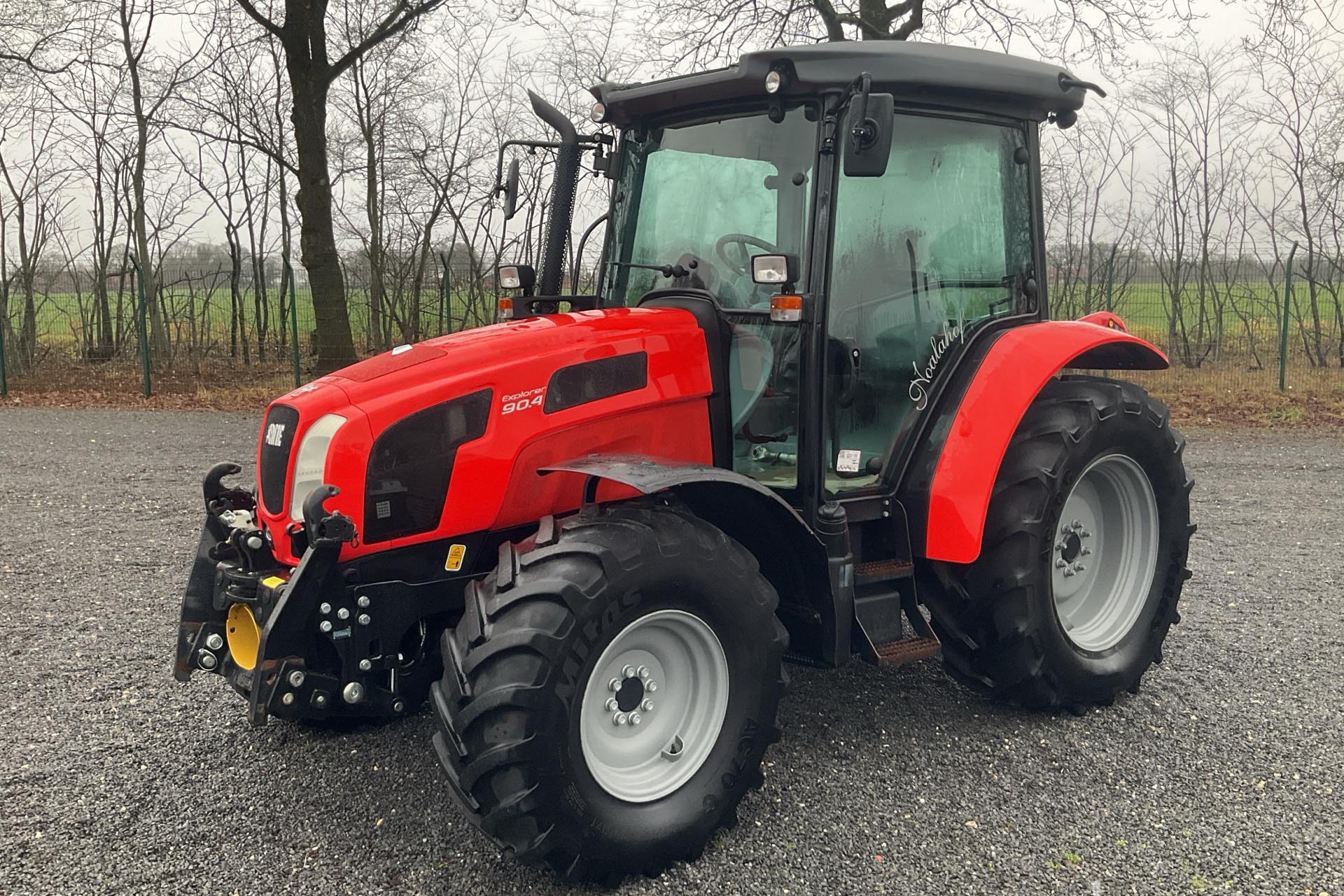

The 2016 SAME Explorer 90.4 DT (4WD) is a highly versatile, medium-duty utility tractor. It is part of the upgraded Explorer generation that introduced the modular FARMotion engine, designed specifically for agricultural demands rather than industrial use.
Engine Specs
The 90.4 model is powered by a high-efficiency 4-cylinder engine featuring electronic common-rail fuel injection and a diesel oxidation catalyst (DOC) to meet emission standards without requiring AdBlue.
Engine Model: SDF FARMotion (Tier 4i / Stage IIIB compliant)
Displacement: 3.85 litres (4-cylinder)
Aspiration: Turbocharged and Intercooled
Rated Engine Power: 84 hp (61.6 kW) @ 2200 RPM
Max Engine Power: 88 hp (65 kW) @ 2000 RPM
Max Torque: 354 Nm @ 1600 RPM
Fuel Tank Capacity: 130 litres
Drivetrain
Depending on whether the tractor was ordered in the LS (Mechanical) or GS (Hi-Lo/Powershuttle) trim line, the transmission features varying levels of automation:
LS Configuration (Standard): Fully mechanical synchromesh gearbox with a mechanical shuttle lever.
GS Configuration (Premium): SenseClutch Hydraulic Powershuttle (with adjustable modulation) and a 2-stage Hi-Lo powershift splitter.
Speeds: Ranging from 10F/10R up to 40F/40R if equipped with a creeper range and Hi-Lo.
Maximum Road Speed: 40 km/h (Available with 40-ECO which achieves top speed at an economical 1800 engine RPM).
Brakes: 4-wheel wet disc braking (true four-wheel braking via independent discs on both the front and rear axles).
Hydraulics and PTO
System Type: Open Center hydraulic system with independent steering and main pumps.
Main Pump Capacity: 55.0 litres per minute (dedicated entirely to spools and rear lift).
Rear Lift Capacity: 3,600 kg as standard (can be boosted to 4,800 kg with optional assist rams, Category II 3-point hitch).
Remote Valves: 2 to 3 double-acting mechanical spool valves.
PTO Speeds: 4-speed independent PTO (540 / 540E / 1000 / 1000E RPM) with electro-hydraulic engagement.
Dimensions and Operating Weights
Wheelbase: 2.40 metres (94.4 inches)
Overall Length: 4.27 metres (168 inches)
Overall Height: 2.63 metres (103.5 inches) to the top of the cab.
Ground Clearance: 400 mm (15.7 inches)
Base Operating Weight: Approximately 3,900 kg (8,598 lbs) without ballast weights.
Maximum Permissible Weight: 6,200 kg (13,668 lbs).
Cab Comfort
Cab Model: TopVision Cab (4-pillar design for maximum visibility)
Key Features: Flat floor platform, standard air conditioning, hydro-silent block cab suspension, and a dedicated high-visibility roof window for front-loader operations
Ready To Work
CE Certificat
