Description

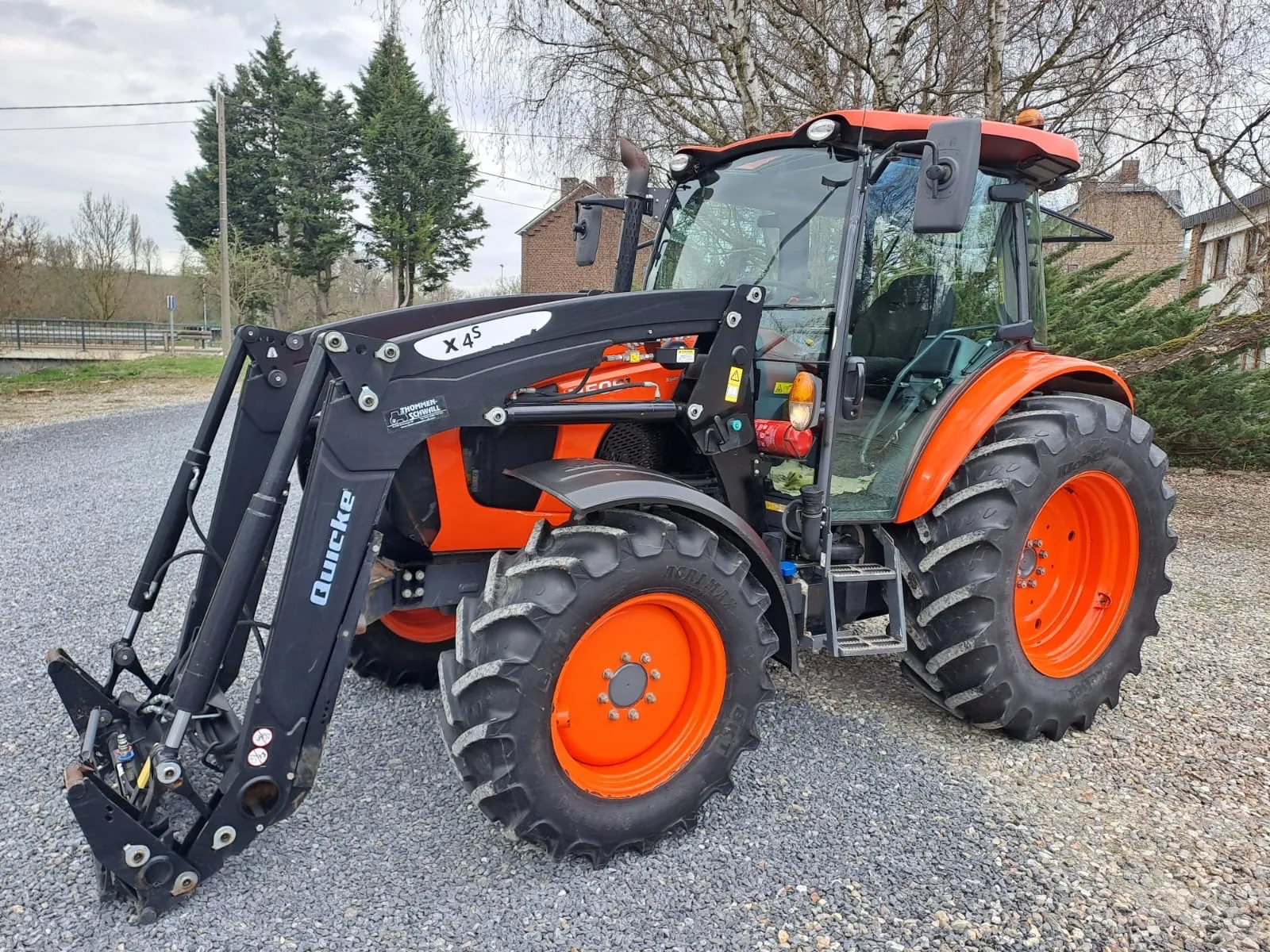

The 2018 Kubota M5091 4WD is a highly nimble, compact utility tractor designed for general yard chores, livestock operations, and light field duties. Built as the successor to the M8560, it features a heavy focus on visibility, ease of use, and strict emission compliance.
Engine Specs
The M5091 is powered by Kubota's proprietary common-rail diesel engine, utilizing DPF (Diesel Particulate Filter) and SCR (AdBlue) technologies to meet Stage IV emissions standards.
Engine Model: Kubota V3800-CR-TIEF4
Displacement: 3.8 litres (4-cylinder, 16 valves)
Aspiration: Turbocharged and Intercooled
Rated Engine Power: 93 hp (69 kW) @ 2400 RPM
Max Torque: 346 Nm @ 1400–1600 RPM
Fuel Tank Capacity: 105 litres (plus 12.3 litres for AdBlue)
Transmission and Drivetrain
The standard transmission configuration is built around a multi-stage gearbox offering excellent low-speed options.
Transmission Type: Synchro-shuttle or Dual-Speed Power-Shuttle
Speeds: 36 Forward and 36 Reverse (incorporating 6 synchronized gears across 3 ranges, supplemented by an electronic Hi-Lo splitter)
Shuttle: Electro-hydraulic steering-column mounted lever (clutchless directional changes)
Maximum Road Speed: 40 km/h (featuring a 40-ECO system that maintains top speed at a fuel-saving, reduced engine RPM)
Brakes: Hydraulic wet disc brakes acting on all 4 wheels
Hydraulics and PTO
System Type: Open Center hydraulic circuit
Total Pump Capacity: 64.0 litres per minute dedicated entirely to external services and linkage (plus a separate 25.2 L/min steering pump)
Rear Lift Capacity: 4,100 kg at the link ends (Category II 3-point hitch)
Remote Valves: 2 standard valves (expandable up to 4 mechanical spools)
PTO Speeds: Independent 540 / 540E RPM as standard (1000 RPM was an optional extra)
Dimensions and Capacities
Wheelbase: 2.25 metres (88.6 inches)
Overall Weight: Approximately 3,420 kg (base machine weight, without ballast weights or a loader)
Turning Radius: Exceptionally tight 4.2 metres (boosted by Kubota's Bevel Gear front axle design, which eliminates universal joints for a higher steering angle)
Cab Comfort
Cab Design: "Ultra Grand Cab II" panoramic curved-glass layout
Key Features: Flat floor platform, standard air conditioning, overhead roof skylight glass panel (crucial for maximum visibility when operating a front-end loader at maximum height), and an air-suspended operator's seat
