Description

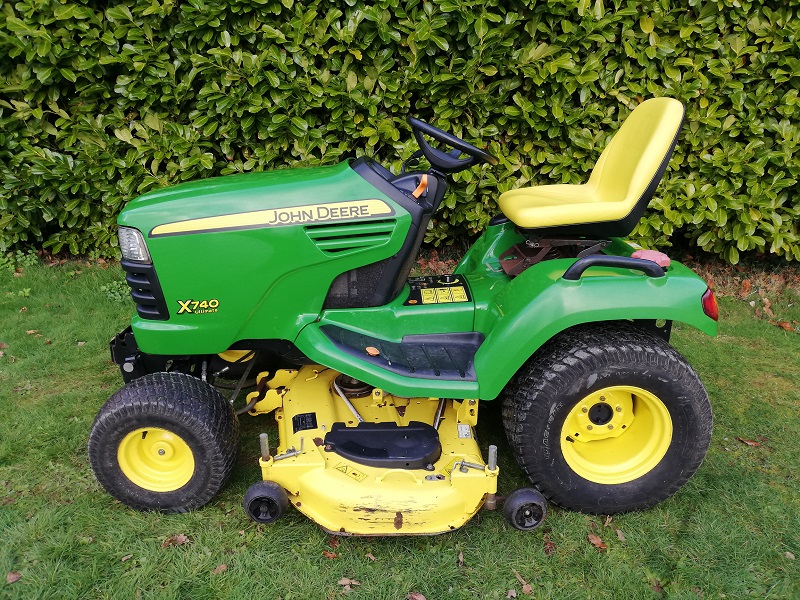

The John Deere X740 Ultimate is a commercial-grade diesel garden tractor engineered for large estate management and professional landscaping
The definitive technical specifications for the standard Two-Wheel Drive (2WD) diesel configuration
Engine and Powertrain
Engine Manufacturer: Yanmar
Engine Model: 3TNV76 (on early X740 variants) or 3TNM74F (on late-generation/X750 platforms)
Engine Type: 3-cylinder, liquid-cooled, naturally aspirated four-stroke diesel
Displacement: 1,116 cc (68.1 cu. in.) or 904 cc (55.2 cu. in.) depending on regional emissions year
Gross Power Output: 24.0 hp (17.9 kW) @ 3,425 RPM fast idle
Fuel Tank Capacity: 24.6 Litres
Transmission and Drive System
Transmission Type: Heavy-duty Tuff Torq K90 hydrostatic transmission integrated with the transaxle
Control Method: Twin Touch™ forward/reverse foot pedals
Chassis Layout: Two-Wheel Drive (2WD) with a hydraulically engaged rear differential lock for maximum traction
Brakes: Internal wet multi-disc brakes
Steering: Fully hydrostatic power steering
Hydraulic System and Attachments
System Type: Two-function dual-valve hydraulic control system
Deck Lift System: Hydraulic lift via dash-mounted levers
Mower Deck Drive: Heavy-duty shaft-driven PTO connection (eliminates drive belt slip and wear)
54X: 54-inch (137 cm) cutting width
Cutting Height Range: 25 mm to 133 mm (1.0 to 5.25 inches)
Weight and Dimensions
Wheelbase: 1,380 mm (54.5 inches)
Overall Length: 2,000 mm (78.8 inches)
Overall Width: 1,180 mm (46.8 inches)
Overall Height: 1,270 mm (50.0 inches)
Operating Weight (Tractor Only): 447 kg (985 lbs)
Hydraulic Deck Lift
Hydrostatic Transmission
Power Steering
Front Weights
Ready to work
