Description

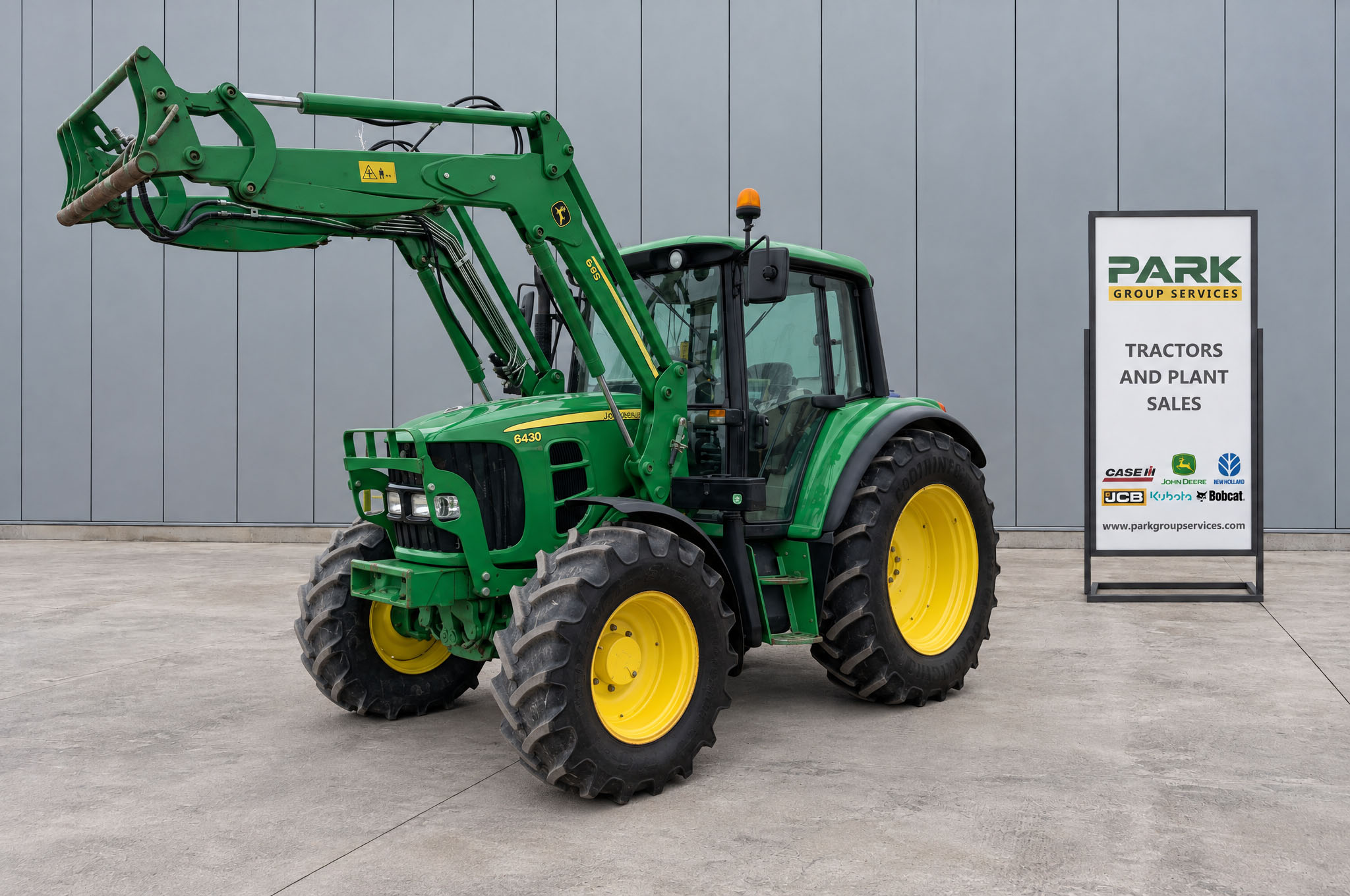

The 2012 John Deere 6430 is a highly popular, versatile utility tractor powered by a 4.5-litre,
4-cylinder John Deere turbocharged engine (boosting up to 128 hp with Intelligent Power Management on Premium models)
Built in Mannheim, Germany, 2012 represents the final production year for this iconic model
It is celebrated across the UK for its structural durability, full-frame chassis configuration,
and mechanical reliability compared to subsequent 6R generations
Engine and Performance
Engine Model: John Deere Power Systems (JDPS) PowerTech Plus (4045HL480)
Cylinders / Displacement: 4 cylinders, 4.5 L (4,525 cm³)
Aspiration: Variable Geometry Turbocharger (VGT), intercooled, Common Rail fuel injection
Engine Power (Premium Specification): 125 hp (92 kW) nominal, boosting to 128 hp with Intelligent Power Management (IPM)
Emissions Standard: Stage III A / Tier 3 (strictly mechanical-electronic setup, completely free from complex AdBlue or DPF systems)
Transmission Options
PowrQuad Plus: 16x16 or 24x24 semi-powershift with 4 powershift steps in synchronized ranges.
AutoQuad Plus: Adds automatic shifting functionality within the powershift steps based on engine load.
AutoPowr (IVT): Premium, hydro-mechanical step-less continuously variable transmission (CVT).
Shuttle: Left-hand electro-hydraulic steering-column PowrReverser (clutchless direction shifts).
Top Speed: 40 km/h or 50 km/h
Hydraulics and Hitch
Hydraulic System Type: Open-centre standard on basic specs; Closed-Centre Load-Sensing (CCLS) on Premium versions.
Standard Hydraulic Flow: 65 L/min standard gear pump configuration.
Premium Hydraulic Flow: 110 L/min (29 gpm) pressure-flow compensated axial piston pump.
Rear Hitch Type: Category II/III three-point linkage with Electronic Hitch Control (EHR).
Rear Lift Capacity: 5,900 kg (13,000 lbs) maximum lift capacity at ball ends (up to 6,500 kg on heavy-duty specs).
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM (shiftable from inside the cab).
Dimensions and Weights
Operating Weight: Approx. 4,750 kg (10,470 lbs) unladen weight for a 4WD Cab version.
Maximum Permissible Weight: 8,200 kg (18,077 lbs).
Wheelbase: 240 cm (94.5 inches).
Fuel Tank Capacity: 165 litres standard; up to 185 litres optional.
Typical UK Tyres: Front 420/85 R24, Rear 460/85 R38
Operator Station and Trim Lines
Standard (SE) Specification: Simple cab trim layout with mechanical hydraulic spool valve levers, basic digital instrumentation console, and fixed front axles.
Premium Specification: Equips the deluxe TechCenter cab with an integrated CommandCenter armrest display, electronic spool options, TLS (Triple Link Suspension) front axle suspension, and HCS mechanical or pneumatic cab suspension options.
