Description

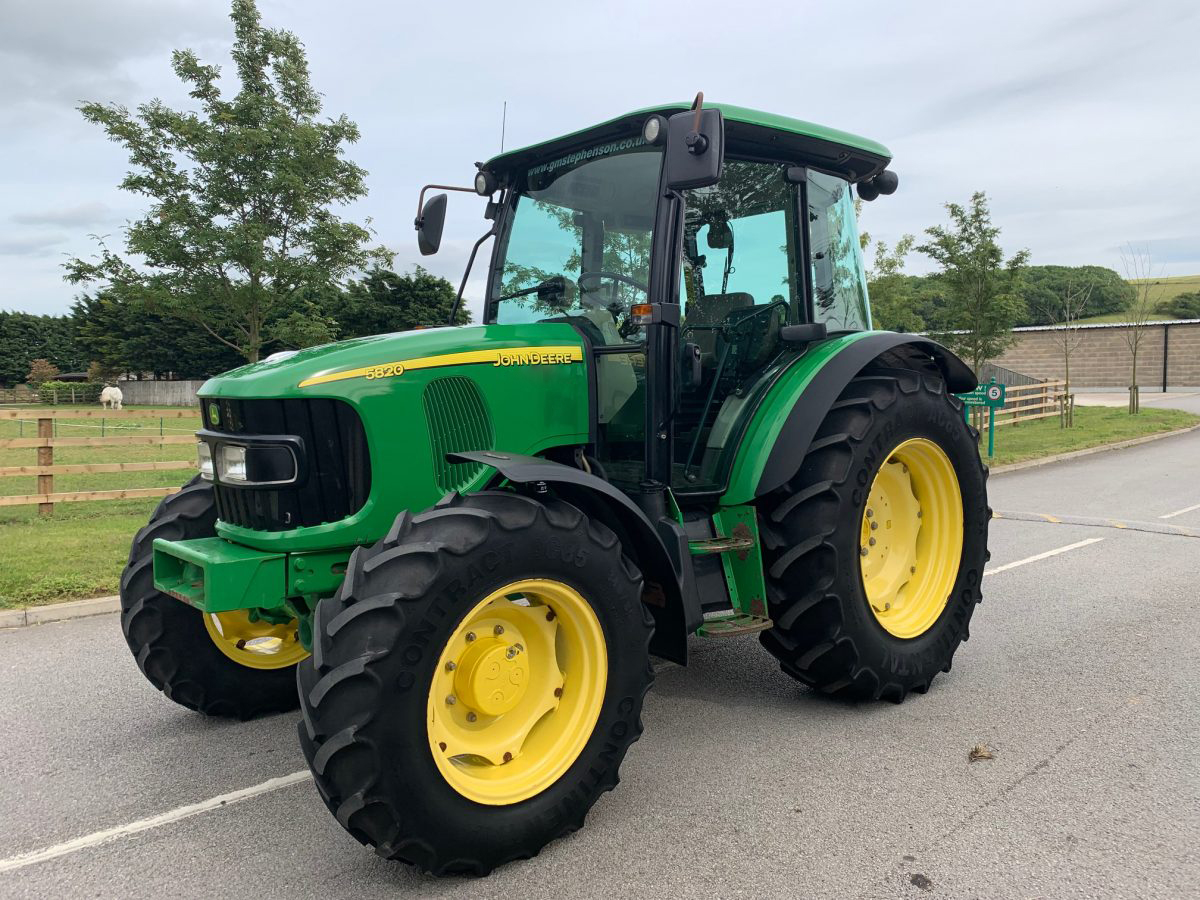

The 2007 John Deere 5820 is a highly premium, compact utility tractor
Powered by a 4.5-litre, 4-cylinder John Deere turbocharged engine
Built in Mannheim, Germany, it features John Deere's iconic full-frame design, making it exceptionally
strong and highly sought after on UK farms as a heavy-duty loader tractor.
Because it is a Tier 2/Stage II engine setup, it is completely free from complex modern emissions systems like AdBlue, DPF, or EGR.
Engine and Performance
Engine Manufacturer/Model: John Deere Power Systems (JDPS) PowerTech (4045T)
Cylinders / Displacement: 4 cylinders, 4.5 L (4,525 cm³)
Aspiration: Turbocharged, intercooled, mechanical fuel injection
Engine Power: 88 hp (65 kW) nominal / 91 hp (67 kW) maximum power at 2,300 RPM
Max Torque: 372 Nm at 1,400 RPM
Transmission and Drivetrain
Transmission Type: PowerQuad Plus or AutoQuad Plus (Semi-Powershift)
Gears: 16 forward and 16 reverse (4 powershift steps in 4 synchronized ranges,
shifted via buttons on the range lever without using the clutch)
Shuttle: Electro-hydraulic PowrReverser (clutchless steering column shuttle)
Drivetrain: 4WD (electro-hydraulic engagement)
Brakes: Hydraulic wet multi-disc brakes
Top Speed: 40 km/h (25 mph)
Hydraulics and Hitch
Hydraulic System: Closed-centre, pressure-compensated (PC) or optional load-sensing (CCLS) axial piston pump
Standard Hydraulic Flow: 56 L/min (14.8 gpm) standard
Rear Hitch Type: Category II three-point linkage
Rear Lift Capacity: 3,700 kg (8,157 lbs) standard (up to 4,200 kg / 9,259 lbs with optional assist rams)
Hitch Controls: HMS (Headland Management System) and Electronic Hitch Control (EHR) standard on premium specs
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM (shiftable from inside the cab)
Dimensions and Capacities
Operating Weight: Approx. 4,000 kg (8,818 lbs) unladen weight for a 4WD Cab version
Maximum Permissible Weight: 6,600 kg (14,550 lbs)
Wheelbase: 225 cm (88.6 inches) providing excellent stability and tight turning agility
Fuel Tank Capacity: 131 litres
Standard Tyres: Front 380/70 R24, Rear 480/70 R34
Operator Station
Cab: TechCenter Premium Cab featuring an adjustable steering column, a completely flat floor,
mechanical or air-suspension seat, high-capacity heating, and standard factory air conditioning
The panoramic glass roof provides optimal visibility for overhead loader work
