Description

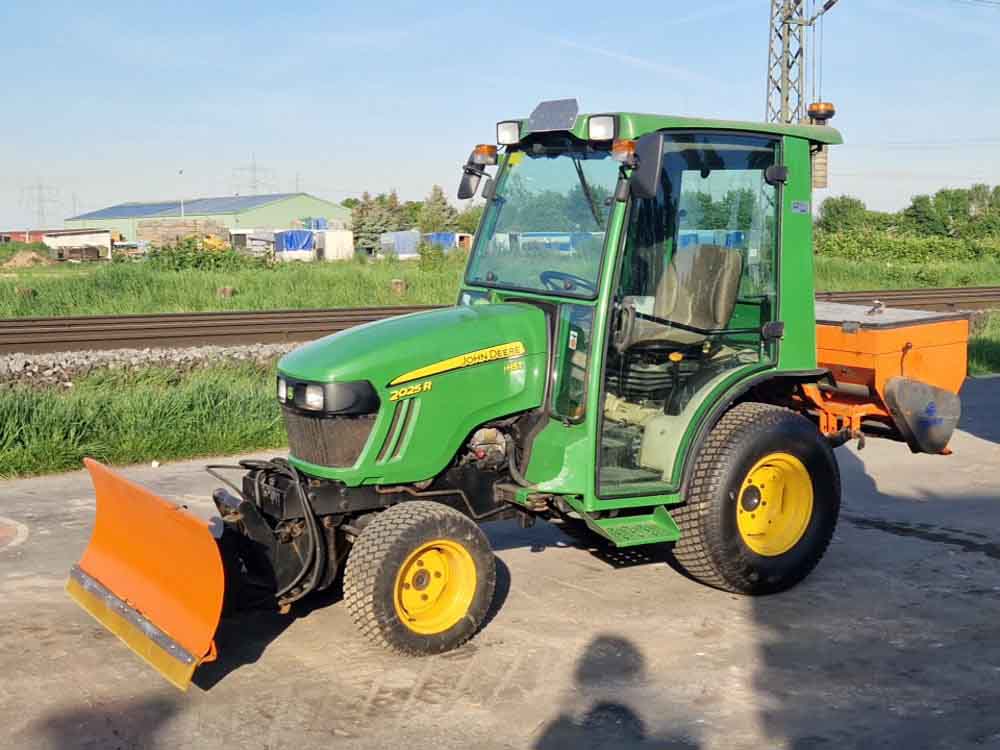

The 2013 John Deere 2025R is a premium compact utility tractor
Yanmar 3-cylinder diesel engine. Part of John Deere's 2R series,
it features a heavy-duty cast iron chassis, a twin-pedal hydrostatic transmission,
and standard 4WD, making it a highly capable workhorse for smallholdings, estates, and commercial landscaping
Engine and Performance
Engine Manufacturer: Yanmar (Model 3TNV76)
Cylinders / Displacement: 3 cylinders, 1.11 litres (67.9 cubic inches)
Aspiration: Naturally aspirated, liquid-cooled
Engine Power: 24.2 hp (18.0 kW) gross at 3,000 RPM
PTO Power: 18 hp (13.4 kW)
Emissions Standard: Interim Tier 4
(strictly mechanical injection, entirely free from complex DPF or AdBlue exhaust systems)
Transmission and Drivetrain
Transmission Type: 2-range Hydrostatic (HST)
Speed Controls: Twin Touch™ foot pedals (separate pedals for forward and reverse)
Drivetrain: 4WD standard with on-the-fly mechanical engagement
Brakes: Wet disc brakes
Differential Lock: Standard mechanical foot pedal lock
Top Forward Speed: 20 km/h (12.4 mph)
Hydraulics and Hitch
Hydraulic System Type: Open-centre layout powered by dual gear pumps
Implement Pump Flow: 20.2 L/min (5.3 gpm)
Steering Pump Flow: 15.0 L/min (4.0 gpm)
Total Hydraulic Flow: 35.2 L/min (9.3 gpm)
Rear Hitch Type: Category I three-point linkage
Rear Lift Capacity: 522 kg (1,150 lbs) maximum lift at the ball ends
PTO Configuration: Dual independent PTO standard:
Rear PTO: 540 RPM
Mid PTO: 2,100 RPM (used to drive mid-mount mower decks)
Dimensions and Capacities
Operating Weight: Approx. 753 kg (1,660 lbs) for bare open-station tractor
Wheelbase: 160 cm (63 inches)
Overall Length: 276 cm (108.6 inches) with 3-point hitch
Fuel Tank Capacity: 23.1 litres
Blade, Spreader
Ready to work
