Description

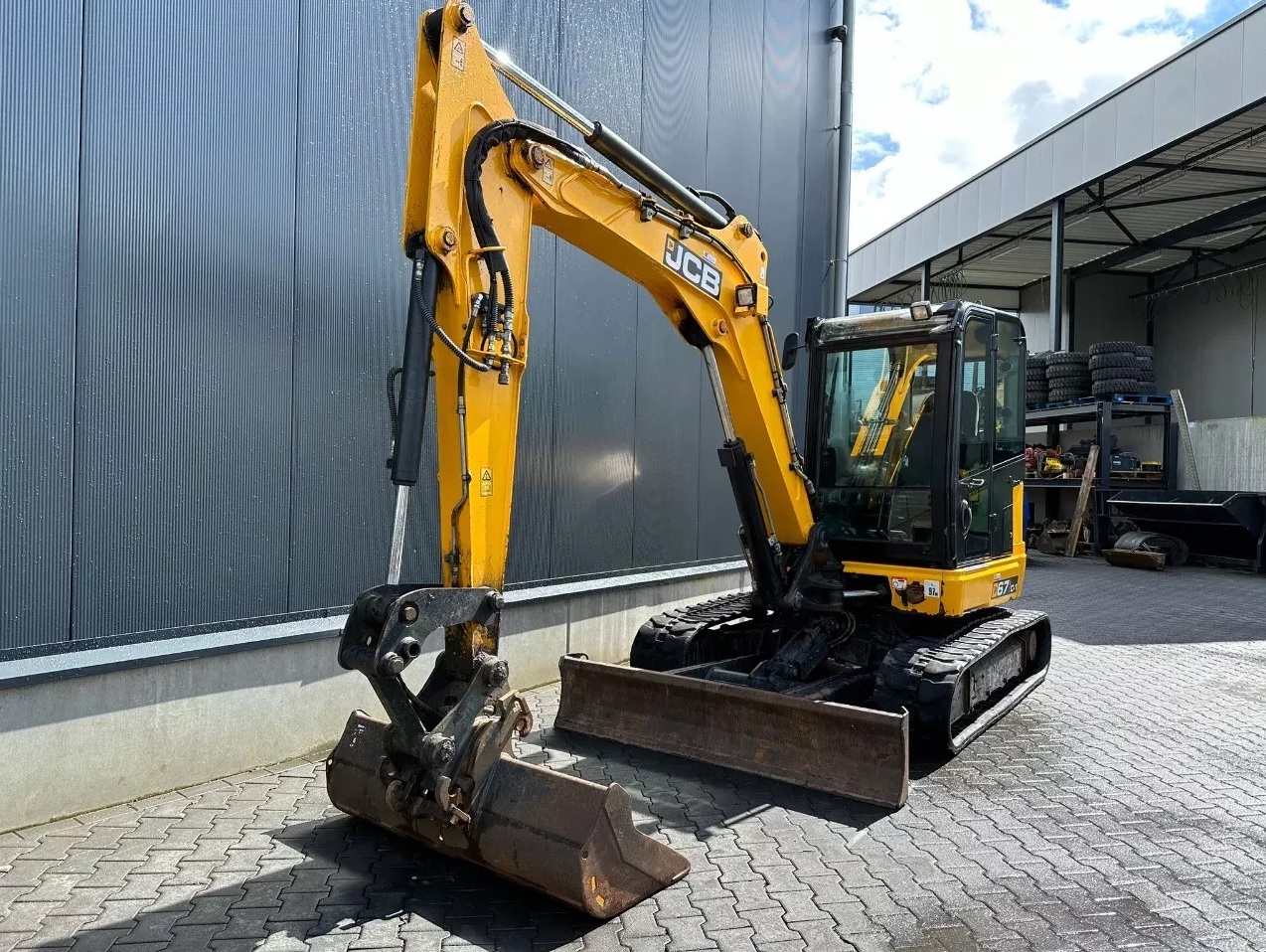

The 2015 JCB 67C-1 is a conventional tail-swing midi excavator built in the 6.7-tonne class. Engineered with a heavy-duty H-frame undercarriage and a robust tilt-rotate ready geometry, this machine is highly valued for high-productivity trenching, commercial civil works, and aggregate handling where rear spacing constraints are less critical.
Dimensions and Operating Weight
Operating Weight: 6,760 kg (14,903 lbs) (includes fully enclosed ROPS cab, rubber tracks, standard arm, and fuel)
Overall Transport Length: 5,643 mm
Overall Transport Height: 2,575 mm (Standard cab roofline)
Overall Machine Width: 2,000 mm
Tail Swing Overhang: 1,490 mm (Conventional profile for maximum structural lifting stability)
Standard Track Shoe Width: 400 mm (Rubber tracks or steel tracks option)
Dozer Blade Width x Height: 2,000 mm x 394 mm
Engine and Drivetrain
Engine Model: JCB Diesel by Kohler KDI 2504 TCR (Turbocharged, Common Rail, 4-cylinder diesel)
Emissions Standard: EPA Tier 4 Final / EU Stage IIIB Compliant (No diesel particulate filter [DPF] or AdBlue fluid required, simplifying mechanical maintenance)
Gross Engine Power: 41.0 kW (55.0 HP) @ 2200 RPM
Maximum Torque: 300 Nm @ 1500 RPM
Displacement: 2.482 L
Travel Speed: Dual-speed hydrostatic with auto-kickdown system — Low: 2.4 km/h / High: 4.3 km/h
Drawbar Pull / Tractive Effort: 43.6 kN
Operating Working Range (1.65m Standard Arm)
Maximum Digging Depth: 4,054 mm (Increases to 4,375 mm if equipped with the 1.97m long-arm variant)
Maximum Reach (Ground Level): 6,260 mm
Maximum Dump Height: 4,640 mm
Maximum Cutting Height: 6,013 mm
Bucket Digging/Breakout Force (ISO): 47.5 kN
Arm Crowd Force (ISO): 31.1 kN
Boom Swing Angle: 70° to the Left / 55° to the Right
Hydraulic System
System Design: Load-Sensing, Flow-Sharing Hydraulic System (Automatically matches oil flow to driver joystick feedback for ultra-smooth multi-function cycling)
Main Hydraulic Flow Capacity: 144.0 L/min (Variable displacement axial piston pump)
Auxiliary Hydraulic Flow (High Flow): 90.0 L/min (Perfect for concrete breakers, sorting grapples, or sorting vibrators)
Main Relief System Pressure: 250 bar (3,626 psi)
Core Mechanical and Safety Highlights
Zero-DPF Engine Technology: The Kohler-built engine relies on clean-burn common-rail architecture and a DOC system, preventing active exhaust regeneration cycles and minimizing down-time.
100% Steel Bodywork: Unlike many competitor models that use plastic shrouds, the 67C-1 features wrap-around 100% pressed steel side panels and engine bay doors that offer high impact resistance and simple repair profiles.
Auto-Idle and Eco Mode: Standard programmable auto-idle reduces engine RPMs to turtle speeds after a few seconds of joystick inactivity, saving fuel. Two selectable operational modes (Eco or Heavy) match engine power output directly to work loads.
Lovely Machine ready to Work
