Description

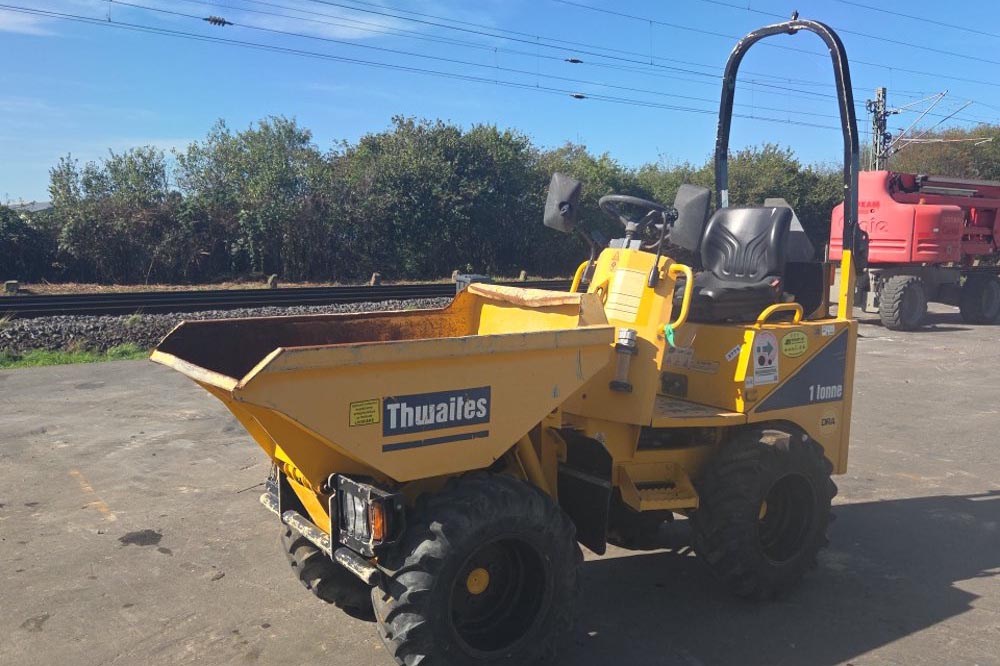

The 2016 Thwaites 1 Tonne High-Tip Dumper is a highly compact, robust machine engineered for restricted-access environments. Its standout characteristic is the high-lift skip mechanism, allowing operators to discharge materials straight over the sides of standard commercial builder's skips.
Engine and Performance
Engine Model: Yanmar 3TNV76, 3-cylinder water-cooled diesel
Power Output: 15.9 kW / 21.4 bhp at 2800 rpm
Maximum Torque: 66.4 Nm
Drive System: Permanent 4x4 with a user-friendly hydrostatic transmission
Traction System: Features a "Twin-Lock" system that automatically maximises traction by distributing power evenly across all four wheel motors
Maximum Travel Speed: 12 km/h (7.5 mph)
Capacities and Weight Weights
Maximum Safe Payload: 1,000 kg
Unladen Machine Weight: 1,295 kg (making it simple to transport on a standard plant trailer)
Skip Material: Hydraulically operated steel plate (3 mm base, 4 mm sides) reinforced with box sections
Skip Capacity (Heaped): 500 Litres
Fuel Tank Capacity: 21 Litres
Dimensions and High-Tip Clearance
Overall Length: 3,192 mm
Overall Width: 1,115 mm (Can be reduced to 982 mm if equipped with optional narrow wheels for tight alleyways)
Overall Height (with ROPS Frame Raised): 2,860 mm
Overall Height (with ROPS Frame Folded Down): 1,773 mm
Maximum Tipping Height (Raised Skip): 1,573 mm
Safety Features
Brakes: Automatic failsafe braking system built directly into the rear drive motors
Roll-Over Protection: Fitted with a folding ROPS (Roll-Over Protective Structure) frame as standard
Operator Environment: Features an adjustable suspension seat accessible from both sides and basic column-mounted controls
Fully serviced oil and filter
CE Marked / Ready to work
