Description

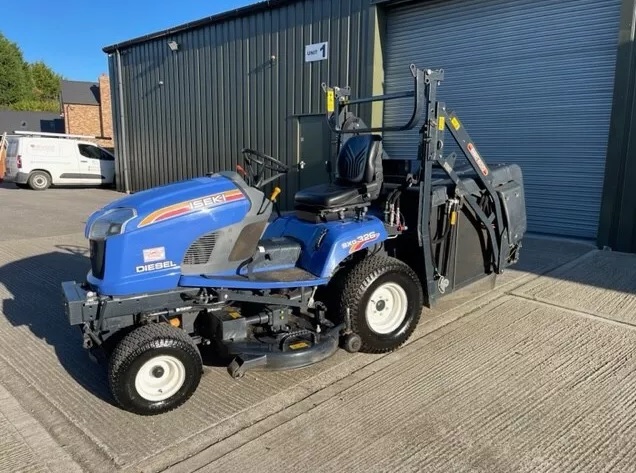

The 2017 Iseki SXG326 is a heavy-duty, commercial-grade ride-on mower designed specifically for local councils, estate managers, and landscaping professionals who require high-capacity cutting and collecting
It is highly regarded for its ability to cut and collect thick, wet grass without clogging, thanks to its direct-collect engineering (no narrow chutes or blowers)
The comprehensive technical specifications for the 2017 Iseki SXG326 are detailed below:
Engine and Powertrain
Engine Model: Iseki E3112 (3-cylinder, liquid-cooled, naturally aspirated diesel).
Displacement: 1,123 cc.
Engine Power: 21.0 hp (15.6 kW) @ 2,600 RPM.
Fuel Capacity: 21.0 Litres – sufficient for a full day of commercial operation.
Transmission: Hydrostatic drive system, controlled via twin foot pedals.
Drive Configuration: Rear-wheel drive (2WD) with a selectable differential lock for extra traction on wet slopes.
Maximum Speed: Forward: 15.0 km/h (9.3 mph) / Reverse: 10.0 km/h (6.2 mph).
Cutting Decks and Collecting System
Unlike belt-driven alternatives, the SXG326 utilizes a heavy-duty shaft-driven cutting deck, providing maximum power transfer directly from the engine to the blades.
Cutting Width Options: 48-inch (1.22 m) or 54-inch (1.37 m) twin-blade overlapping decks.
Cutting Height Range: Mechanical adjustment from 25 mm to 115 mm (controlled via a dial in the operator's platform).
Discharge Method: Direct rear-discharge. The grass is fed through a massive, unobstructed opening straight into the collector.
Collector Capacity: 550 Litres (Low-Tip model) or 600 Litres (High-Tip model).
High-Tip Clearance: The hydraulic scissor-lift on the High-Tip variant allows dumping at a height of up to 1.97 metres into skips or trailers.
Weight and Physical Dimensions
Operating Weight (Low-Tip): 625 kg (1,378 lbs) – inclusive of 48-inch deck and collector.
Operating Weight (High-Tip): 745 kg (1,642 lbs) – inclusive of 48-inch deck and collector.
Overall Length (with collector): 3,215 mm.
Overall Width (with 48" deck): 1,285 mm (increases to 1,440 mm if fitted with the 54" deck).
Overall Height: 1,310 mm (to steering wheel) or 1,650 mm to the top of the ROPS safety frame.
Tires and Comfort Features
Steering: Fully hydraulic power-assisted steering (PAS).
Front Tires: 16 x 6.50 - 8 (Turf profile).
Rear Tires: 23 x 10.50 - 12 (Wide turf profile to minimize ground compaction).
Braking: Wet multi-disc braking system.
Safety: Foldable ROPS (Roll-Over Protection Structure) frame as standard.
