Description

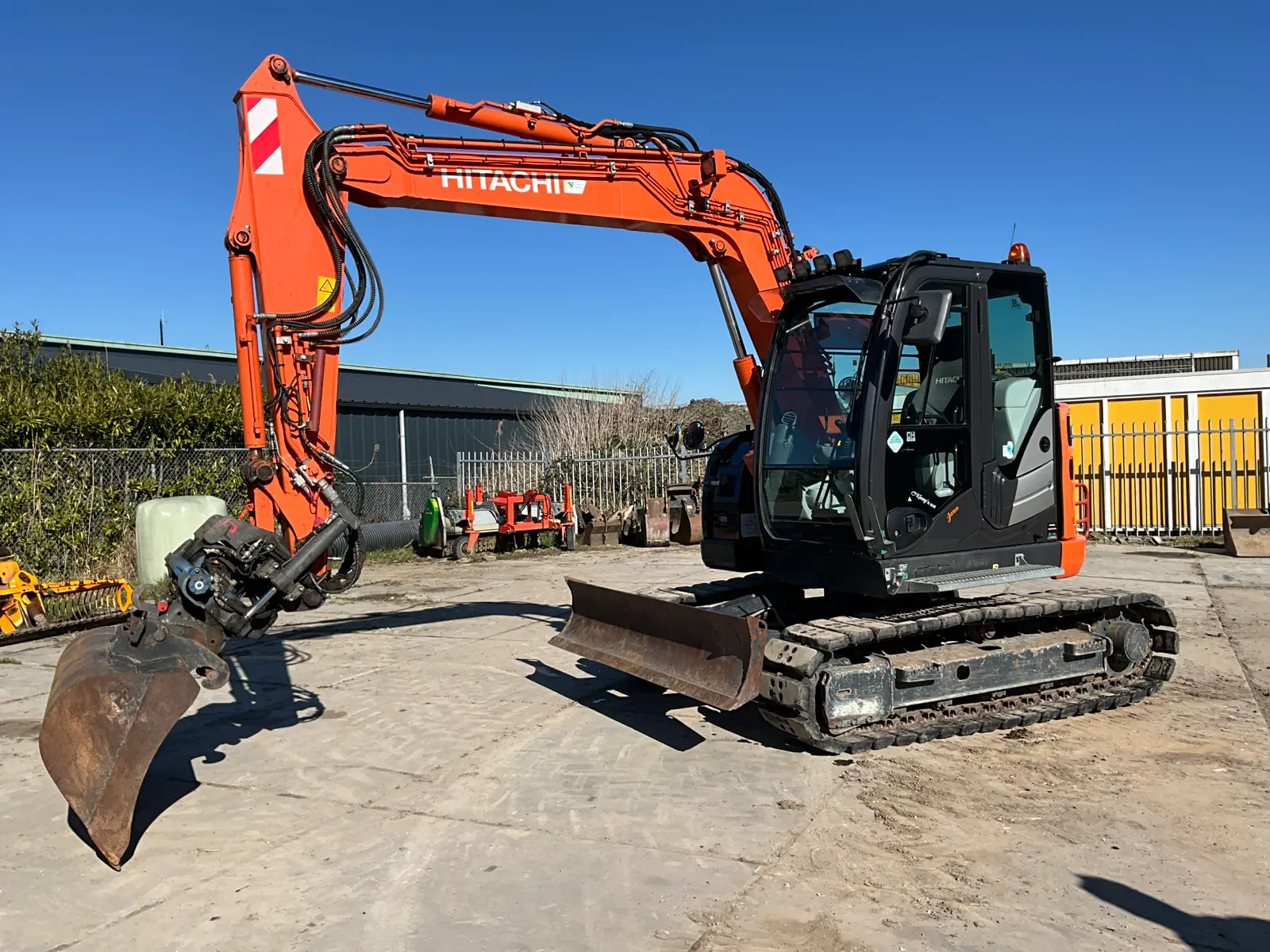

The 2019 Hitachi ZX85US-6 is a highly efficient 8.5-tonne class midi excavator featuring an Ultra-Short Swing (US) design
Engineered for urban utility work, road construction, and confined job sites, its rear counterweight overhangs the tracks by just 290 mm, allowing it to safely spin and work right next to walls or within a single traffic lane
Dimensions and Operating Weight
Operating Weight: 8,290 kg (18,276 lbs) to 8,530 kg (depending on cabin options, steel vs. rubber track pads, and counterweights)
Overall Transport Length: 6,180 mm
Overall Transport Height: 2,690 mm (Standard cab roofline)
Overall Machine Width: 2,200 mm
Rear-End Swing Radius: 1,300 mm (Ultra-short profile)
Standard Track Shoe Width: 450 mm
Engine and Drivetrain
Engine Model: Yanmar 4TNV94L (Water-cooled, 4-stroke, 4-cylinder direct injection diesel)
Emissions Standard: EU Stage V / EPA Tier 4 Final Compliant (Equipped with a maintenance-free DOC and DPF soot filter system)
Rated Engine Power: 42.4 kW (56.9 HP / 57.6 PS) @ 2000 RPM
Displacement: 3.053 L
Travel Speed: High: 4.7 km/h / Low: 3.1 km/h (Automatic high-to-low travel speed shift system)
Drawbar Pull / Traction Force: 65.2 kN
Operating Working Range (1.62m Standard Arm)
Maximum Digging Depth: 4,110 mm (Increases to 4,510 mm with the 2.12m long-arm option)
Maximum Reach (Ground Level): 6,750 mm
Maximum Dump Height: 4,920 mm
Maximum Cutting Height: 6,820 mm
Bucket Digging Force (ISO): 55.0 kN
Arm Crowd Force (ISO): 38.0 kN
Hydraulic System
System Design: Hitachi HIOS IV Hydraulic System (Advanced multi-pump load sensing layout designed to eliminate structural hydraulic pressure loss during combined boom movements)
Main Hydraulic Flow Capacity: 3 variable displacement axial piston pumps (2 x 72.0 L/min + 1 x 56.0 L/min for steering/swing)
Auxiliary Hydraulic Flow: 72.0 L/min
(Optimized for running heavy concrete breakers, sorting grapples, and multi-processors)
Main Relief System Pressure: 26.0 MPa (260 bar)
Core Mechanical and Safety Highlights
HIOS IV Fuel Efficiency: The upgraded hydraulic management system matches pump flow precisely to engine rpm, lowering fuel consumption by up to 8% compared to the older Series 5 models without sacrificing arm speed.
ROPS-Certified Quiet Cabin: Outfitted with an expansive, pressurised workspace utilizing a high-back mechanical or air suspension seat, a multi-function 7-inch colour LCD monitor, and an optional rearview monitoring camera.
Reinforced Undercarriage: Features an upgraded, heavy-duty track frame layout with high-durability upper rollers, thickened idler brackets, and standard travel motor covers to shield internal gears from mud packs.
Fully serviced and ready to work
