Description

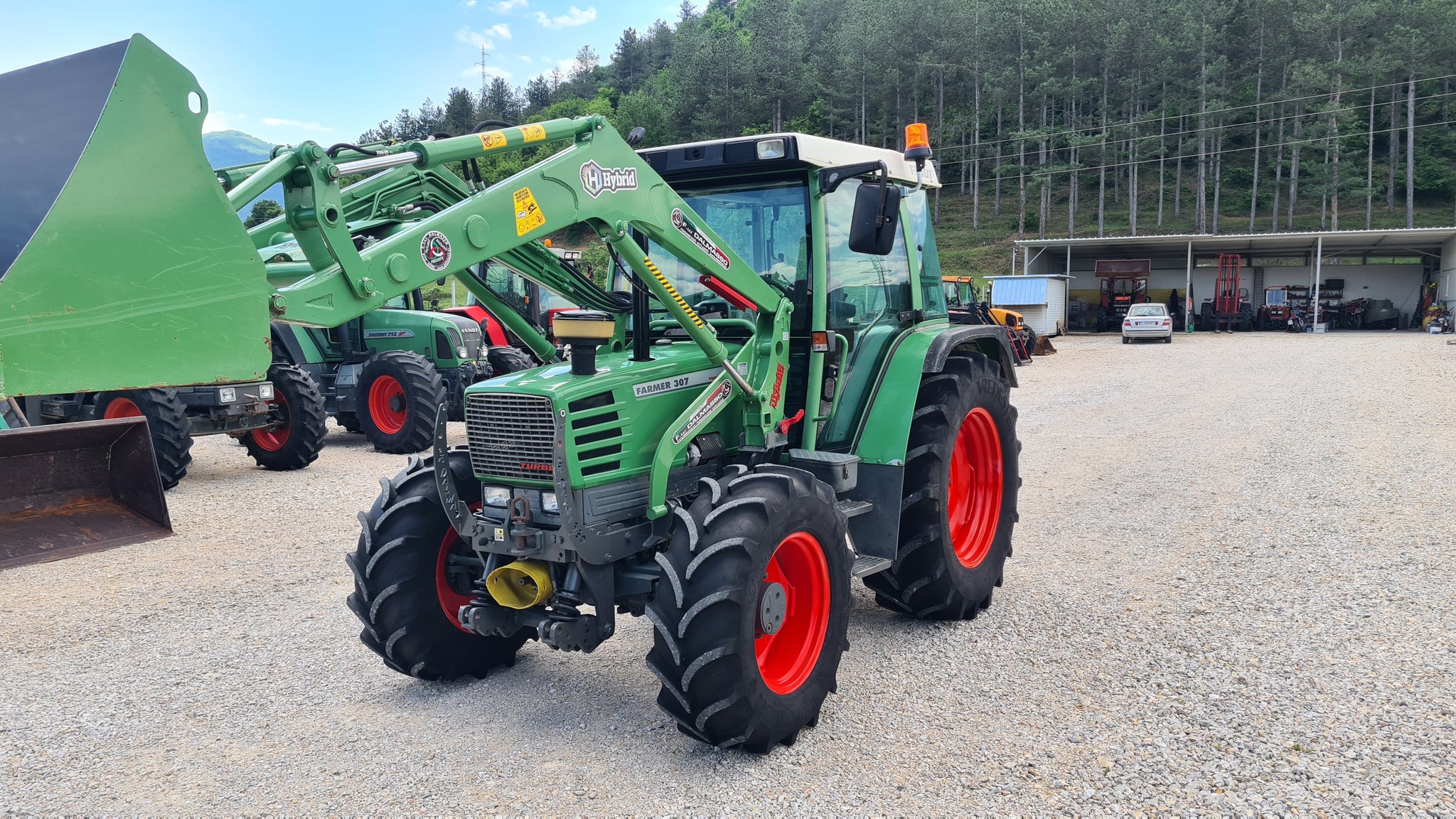

The 2001 Fendt Farmer 307 supplied to the UK market was a premium compact utility tractor
It featured a mechanical drivetrain enhanced by Fendt's signature Turbomatik fluid clutch,
making it highly popular in the UK as a loader and yard tractor
Engine and Performance
Engine Manufacturer/Model: Deutz BF4M1012E
Cylinders / Displacement: 4 cylinders, 3.2 litres (3,192 cm³)
Aspiration: Turbocharged, liquid-cooled
Engine Power: 75 hp (56 kW) at 2,250 RPM
Max Torque: 296 Nm at 1,500 RPM
Emissions Tier: Tier 1 / Stage I (strictly mechanical injection, no electronic emission controls)
Transmission and Drivetrain
Gearbox Type: Fendt 21F/6R manual overdrive transmission
Fluid Coupling: Fitted with the Fendt Turbomatik fluid clutch (allows the tractor to pull away smoothly and stop in gear without stalling, ideal for loader work).
Splits: 3-speed splitters (underdrive, normal, overdrive) with mechanical shuttle.
Drivetrain: 4WD. ZF front axle with automatic locking differential.
Top Speed: 40 km/h (25 mph) with standard road gear.
Hydraulics and Lift
Hydraulic System: Open-centre, dual-pump system separating steering and implement demands.
Total Flow Rate: 71.2 L/min (18.8 gpm) combined flow.
Rear Lift Capacity: 4,980 kg (10,978 lbs) maximum lift capacity at the ball ends.
Hitch Control: Standard EHR (Electronic Hitch Control) with external wing buttons and road transport damping.
Rear PTO Speeds: 540 / 750 (540E) / 1,000 RPM independent PTO.
Dimensions and Weights
Operating Weight: Approx. 4,130 kg (9,105 lbs) unladen weight for UK 4WD cab models.
Wheelbase: 238 cm (94 inches)
Overall Height: 268 cm (105.5 inches) to the top of the cab.
Fuel Tank Capacity: 110 litres
Standard Tyre Equipment (UK typical): Front 380/70 R24, Rear 480/70 R34
Operator Station
Cab: Standard comfort cab with panoramic glass doors, mechanical control levers, air-suspension seat
Heating/ventilation, and air conditioning.
