Description

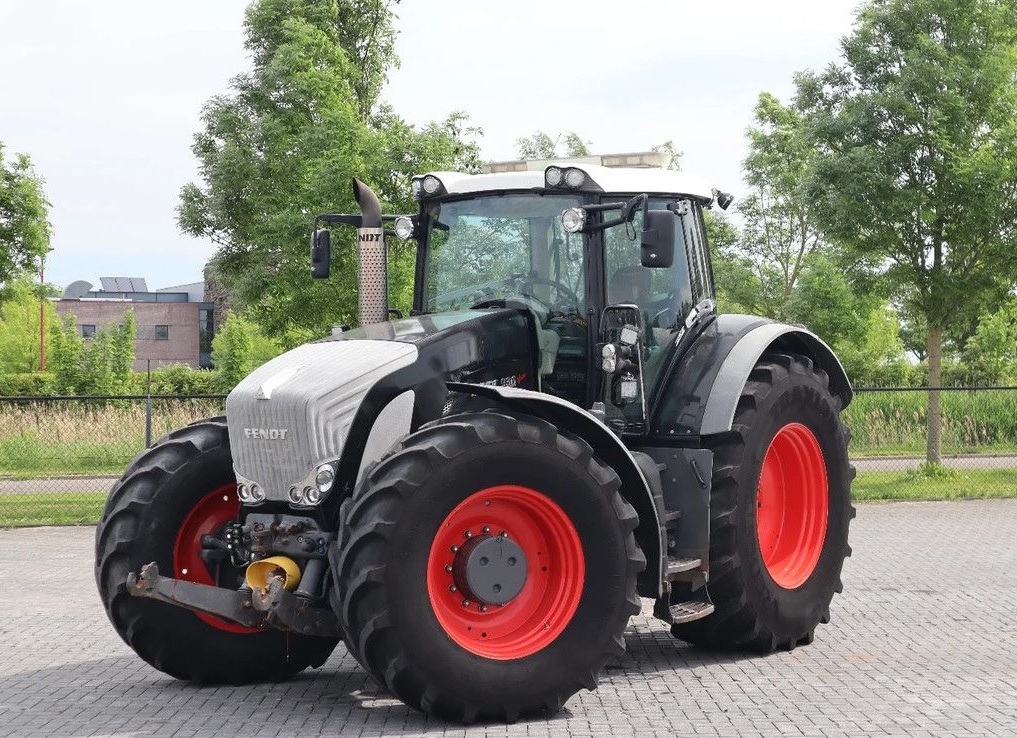

The 2008 Fendt 936 Vario (Com3 generation) is a heavy-duty, high-horsepower tractor built for large-scale farming and heavy contract work.
Powered by a 7.8-litre, 6-cylinder Deutz engine and is renowned for its advanced stepless Vario transmission and impressive power-to-weight ratio.
Engine and Performance
Engine Manufacturer/Model: Deutz TCD 2013 L06 4V
Cylinders / Displacement: 6 cylinders, 7.8 L (7,755 cm³)
Aspiration: Twin-turbocharged, intercooled, electronic common-rail injection
Maximum Power: 360 hp (265 kW) at 1,900 RPM
Max Torque: 1,497 Nm at 1,400 RPM
Emissions Standard: Tier 3 / Stage III
A (free from complex AdBlue or DPF systems)
Transmission and Drivetrain
Transmission Type: Stepless Fendt Vario ML 260 (Continuously Variable Transmission - CVT)
Speed Ranges: Range 1 (Field) 0.02 to 32 km/h; Range 2 (Road) 0.02 to 60 km/h
Drivetrain: Permanent 4WD with automated management and intelligent 100% locking differentials
Brakes: Hydrostatic dual-circuit braking system with wet multi-disc brakes and standard engine exhaust brake
Hydraulics and Hitch
Hydraulic System: Closed-Centre Load-Sensing (CCLS) axial piston pump
Standard Hydraulic Flow: 160 L/min
Max Hydraulic Pressure: 200 bar (2,900 psi)
Rear Hitch Type: Category III / IV three-point linkage with electronic lift control (EHR)
Rear Lift Capacity: 11,800 kg (26,014 lbs) maximum lift capacity at ball ends
Front Lift Capacity: 6,040 kg
Rear PTO Speeds: 540E / 1,000 RPM or 1,000 / 1,000E RPM
Dimensions and Weights
Base Operating Weight: Approx. 10,100 kg (22,266 lbs) unladen weight
Maximum Permissible Weight: Up to 16,000 kg (35,273 lbs) with ballasts
Wheelbase: 305 cm (120 inches)
Overall Length: 565 cm (222.4 inches)
Fuel Tank Capacity: 660 litres
Operator Station and Technology
Cab Specification: Fendt x5 panoramic cab with standard air conditioning, pneumatic 3-point cab suspension, and the early CEBIS-style Varioterminal control system.
Key Factory Options: Rufa (Reverse Drive System) allowing the entire seat and console to pivot 180 degrees, FSC (Fendt Stability Control) for high-speed road safety, and integrated VarioGrip tyre pressure regulation.
