Description

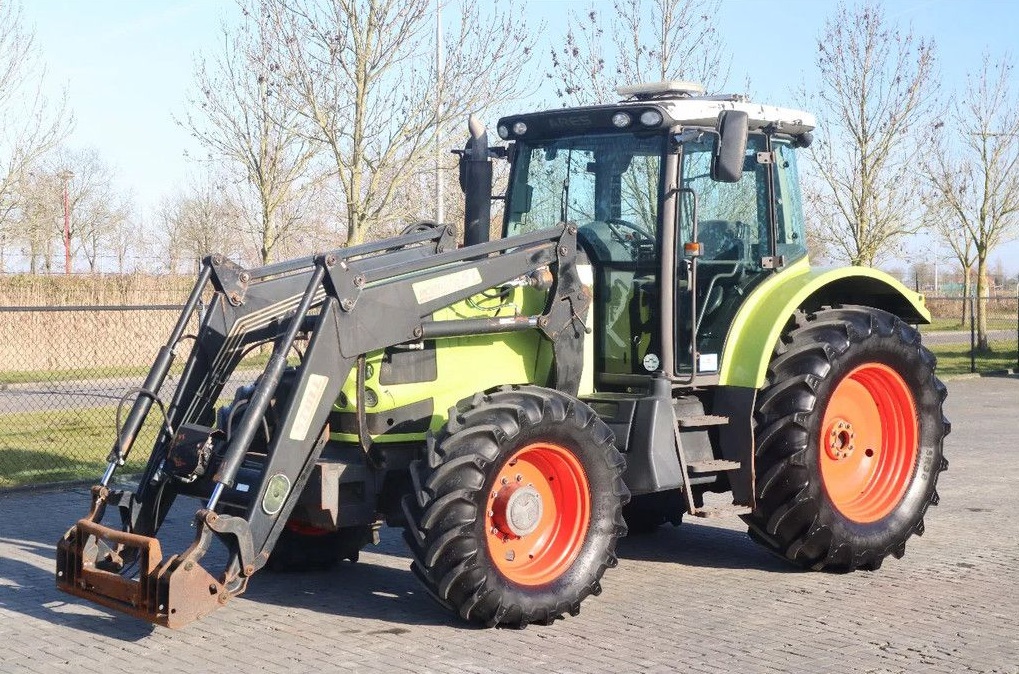

The 2006 Claas Ares 697 ATZ is a robust, heavy-duty 4WD row-crop tractor
Powered by a reliable 6.8-litre John Deere 6-cylinder turbocharged engine
Heavily praised for its premium operator comfort—particularly its iconic 4-point suspended ATZ cab
Engine and Performance
Engine Manufacturer: John Deere (DPS 6068TRT73)
Cylinders / Displacement: 6 cylinders, 6.8 L (6,788 cm³)
Aspiration: Turbocharged, intercooled, Common Rail electronic fuel injection
Engine Power: 140 hp (103 kW) nominal, up to 148 hp (110 kW) max power
Max Torque: 600 Nm at 1,500 RPM
Transmission and Drivetrain
Transmission Type: Hexashift (6 powershift steps in 4 robotised ranges)
Gears: 24 forward and 24 reverse speeds (all shifted without using the clutch pedal)
Shuttle: REVERSHIFT electro-hydraulic Power Shuttle
Drivetrain: 4WD with electro-hydraulic differential locks and automated drivetrain management
Top Speed: 40 km/h
Hydraulics and Hitch
Hydraulic System Type: Closed-Centre Load-Sensing (CCLS) standard on premium builds
Pump Flow: 110 L/min
Rear Hitch Type: Category III three-point linkage with TCE electronic hitch control
Rear Lift Capacity: 8,470 kg maximum at ball ends
Rear PTO Speeds: Independent 540 / 540E / 1,000 / 1,000E RPM
Dimensions and Weights
Operating Weight: Approx. 5,630 kg (12,412 lbs) without ballast
Wheelbase: 282 cm (111 inches)
Fuel Tank Capacity: 250 litres
Standard Tyres (Typical UK Setup): Front 540/65 R28, Rear 650/65 R38
Operator Station
ATZ Cab: Features a highly regarded 4-point mechanical cab suspension system,
which delivers exceptional ride comfort over rough fields and during high-speed road transport
Equips the DRIVESTICK console on the armrest for quick, ergonomic gear selection
alongside mechanical or electronic spool valve levers
Ready to work
