Description

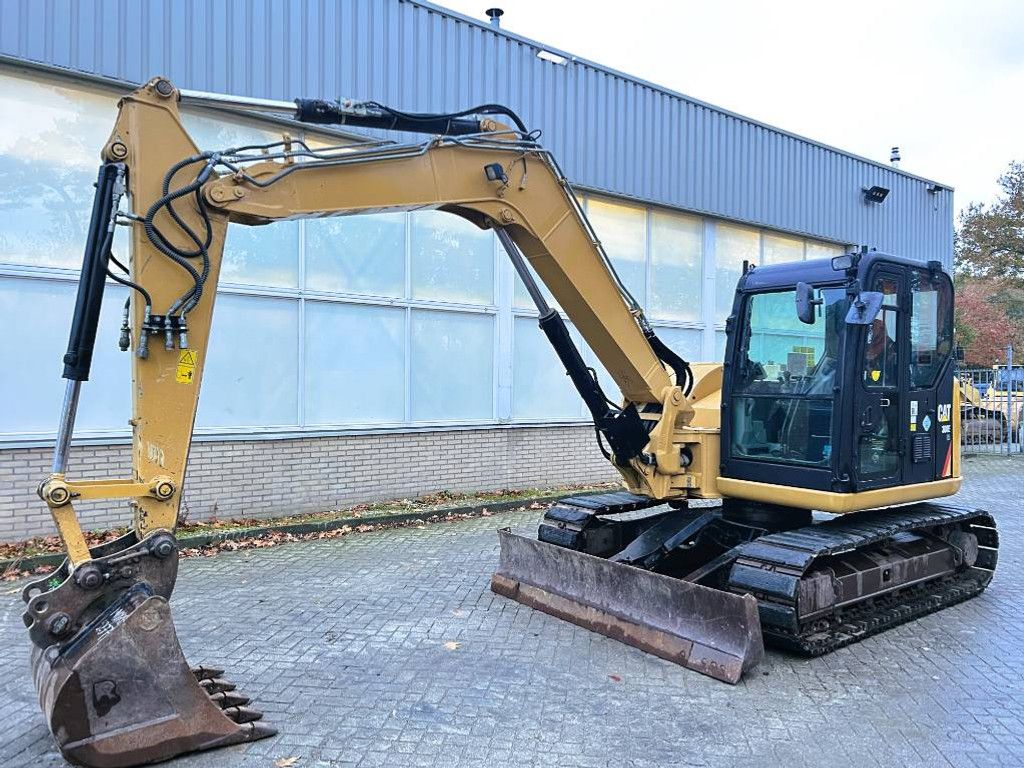

The 2013 Caterpillar 308E CR is a powerhouse in the 8-tonne midi excavator class.
Combining high-performance load-sensing hydraulics with a tight tail swing, it is engineered for heavy lifting, utility trenching, and site preparation where working room next to structures is limited
Dimensions and Shipping Weight
Operating Weight: 8,333 kg (18,371 lbs) to 8,400 kg (varies slightly depending on steel vs. rubber track configurations and counterweights)
Overall Transport Length: 6,380 mm (20.9 ft)
Overall Transport Height: 2,550 mm (8.36 ft)
Overall Machine Width: 2,320 mm (7.61 ft)
Standard Track Shoe Width: 450 mm (18 in)
Dozer Blade Width x Height: 2,320 mm x 450 mm
Engine and Drivetrain
Engine Model: Cat C3.3B DI Turbo (Direct Injection, Turbocharged)
Gross Power: 49.7 kW (66.6 HP) @ 2400 RPM
Net Power: 48.5 kW (65.0 HP)
Displacement: 3.33 L (203.2 cu in)
Emissions Standard: Meets U.S. EPA Tier 4 Interim / EU Stage IIIB compliance
Travel Speed: Dual-speed system — Low: 2.8 km/h / High: 5.3 km/h
Fuel Tank Capacity: 125 L
Operating Working Range
Maximum Digging Depth: 4,150 mm (13.6 ft) (Increases to ~4,540 mm with the optional long stick option)
Maximum Reach (Ground Level): 6,290 mm (20.6 ft) (Horizontal boom reach maxes out at 6,820 mm)
Maximum Dump Height: 5,300 mm (17.4 ft)
Maximum Cutting/Digging Height: 7,330 mm (24.0 ft)
Bucket Digging/Breakout Force (ISO): 60.2 kN (13,534 lbs)
Stick (Arm) Digging Force (ISO): 40.1 kN (9,015 lbs)
Hydraulic System
Pump Type: Load-sensing hydraulic system utilizing a high-efficiency Variable Displacement Piston Pump
Total Pump Flow Capacity: 150 L/min (39.6 gal/min) @ 2000 RPM
Equipment/Travel Operating Pressure: 280 bar (4,061 psi / 28,000 kPa)
Swing System Operating Pressure: 240 bar (3,481 psi / 24,000 kPa)
Core Technological and Design Highlights
Compact Radius (CR) Design: The counterweight overhangs the tracks by mere inches during rotation. This allows operators to confidently pivot and swing inside lane closures or tight urban alleyways without hitting masonry walls.
High-Flow Auxiliary Lines: Built with standard 1-way and 2-way combined auxiliary lines, offering a high flow capacity to cleanly handle power-hungry work tools like heavy concrete pulverisers, mulchers, or hydraulic breakers.
High-Comfort Climate Controlled Cab: Features a fully enclosed ROPS/TOPS structural cab complete with automatic climate control HVAC, an air-suspension high-back seat, and 100% pilot control joysticks.
3 x Buckets Included
CE Certificat / Ready to work
