Description

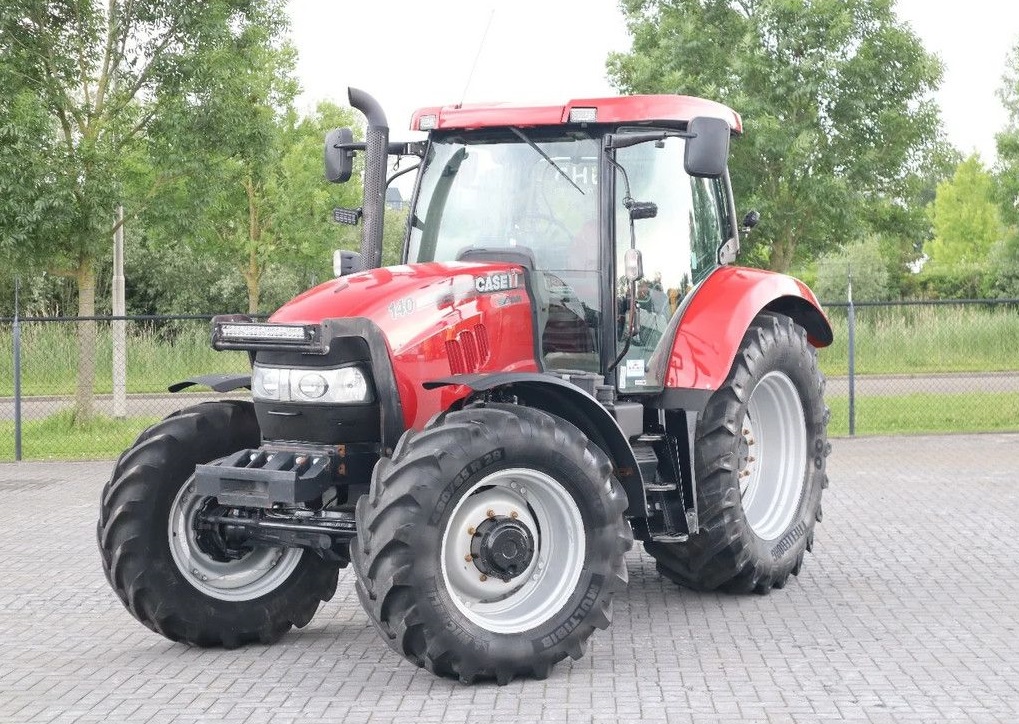

The 2014 Case IH Maxxum 140 is a highly versatile, heavy-duty row-crop tractor
Powered by a 6.7-litre, 6-cylinder FPT turbocharged engine
Engine and Performance
Engine Manufacturer/Model: FPT (Fiat Powertrain Technologies) NEF
Cylinders / Displacement: 6 cylinders, 6.7 L (409 cubic inches)
Aspiration: Turbocharged, intercooled, Common Rail Electronic injection
Standard Power: 141 hp (104 kW) at 2,200 RPM
Max Power (with EPM Boost): 175 hp (129 kW) for transport and PTO applications
Emissions Standard: Tier 4A / Stage IIIB using Selective Catalytic Reduction (SCR / AdBlue)
Transmission and Drivetrain
Transmission Type: Semi-Powershift (typically 16x16 or 17x16 Economy variant)
Gearbox Names: ActiveDrive 4 (4-step powershift in 4 ranges)
Shuttle: Electro-hydraulic Powershuttle with adjustable forward/reverse sensitivity
Drivetrain: 4WD standard with electro-hydraulic differential locks and automated 4WD management
Top Speed: 40 km/h or 50 km/h
Hydraulics and Hitch
Hydraulic System: Closed-Centre Load-Sensing (CCLS) pump
Standard Pump Flow: 113 L/min (29.8 gpm)
Rear Hitch Type: Category II/III three-point hitch with Electronic Hitch Control (EHC)
Rear Lift Capacity: 7,864 kg (17,337 lbs) maximum at ball ends
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM
Dimensions and Weights
Operating Weight: Approx. 5,020 kg (11,067 lbs) without ballast
Maximum Permissible Weight: 9,000 kg (19,841 lbs)
Wheelbase: 264 cm (104 inches)
Fuel Tank Capacity: 250 litres+ 39.5 litres AdBlue
Multicontroller Cab: Premium specification including the Multicontroller armrest with an integrated joystick
Electronic spool valves, and automated headland management controls.
