Description

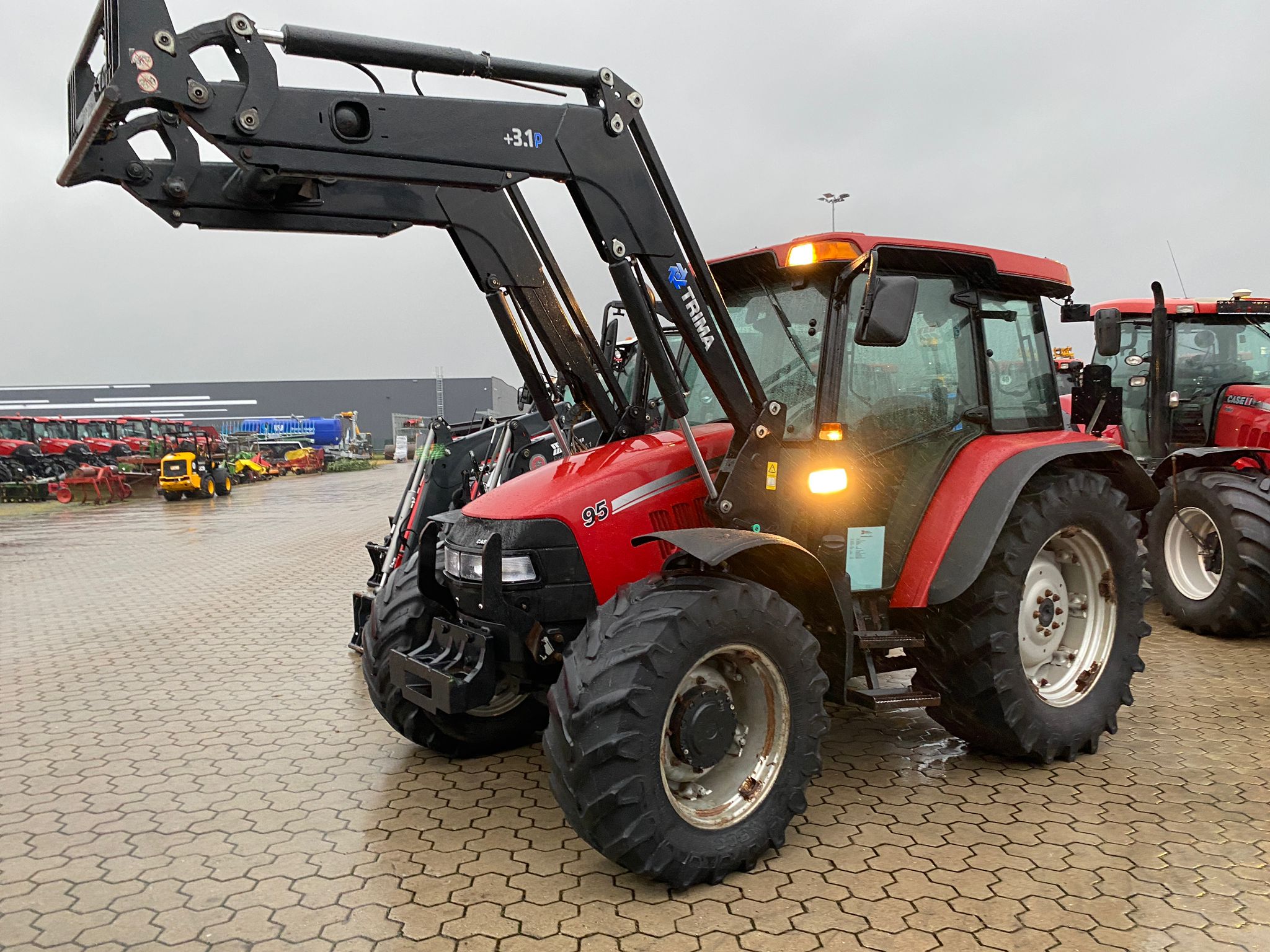

The 2012 Case IH JXU 95 is a highly popular compact utility tractor powered by a 4.5-litre
4-cylinder FPT (Fiat Powertrain Technologies) turbocharged engine
It was built in Jesi, Italy, and shares its structural DNA with the New Holland T5050
making it an incredibly reliable and sought-after loader tractor across UK farms.
Engine and Performance
Engine Manufacturer/Model: FPT NEF (mechanical injection)
Cylinders / Displacement: 4 cylinders, 4.5 L (4,485 cm³)
Aspiration: Turbocharged, intercooled
Engine Power: 96 hp (71 kW) at 2,300 RPM
Max Torque: 390 Nm at 1,300 RPM
Emissions Standard: Tier 3 (strictly mechanical setup, free from complex electronics or AdBlue)
Transmission and Drivetrain
Standard Transmission: 12x12 Mechanical Shuttle
Premium Transmission: 24x24 Dual-Command (Hi-Lo Powershift) with an electro-hydraulic Power Shuttle (clutchless shifting at the steering column)
Drivetrain: 4WD standard for the UK market (electro-hydraulic engagement)
Brakes: Wet multi-disc hydraulic brakes
Top Speed: 40 km/h
Hydraulics and Hitch
Hydraulic System: Open-centre system with dual gear pumps
Implement Pump Flow: 61 L/min (16.1 gpm)
Steering Pump Flow: 34 L/min (9 gpm)
Total Hydraulic Flow: 95 L/min (25.1 gpm)
Rear Hitch Type: Category II three-point hitch (available with electronic hitch control or mechanical lift)
Rear Lift Capacity: 4,450 kg (9,810 lbs) at ball ends (with assist rams)
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM
Dimensions and Capacities
Operating Weight: Approx. 3,930 kg for 4WD Cab configuration
Wheelbase: 225 cm (88.6 inches)
Overall Height: 261 cm to the top of the cab
Fuel Tank Capacity: 127 litres
Operator Station
Cab: Features the Deluxe high-visibility cab, making it highly preferred for front loader work. Standard versions in the UK come with air conditioning, mechanical spool valve levers, and a mechanical or air-suspension driver's seat.
We can professionally arrange competitive delivery for any machine, to any address in Europe, Ireland, North Ireland and Scotland at very competitive rates with our own transport. We take the utmost care to ensure that your vehicle is transported in a safe and fast way.
For quotations or any queries please CONTACT US !
