Description

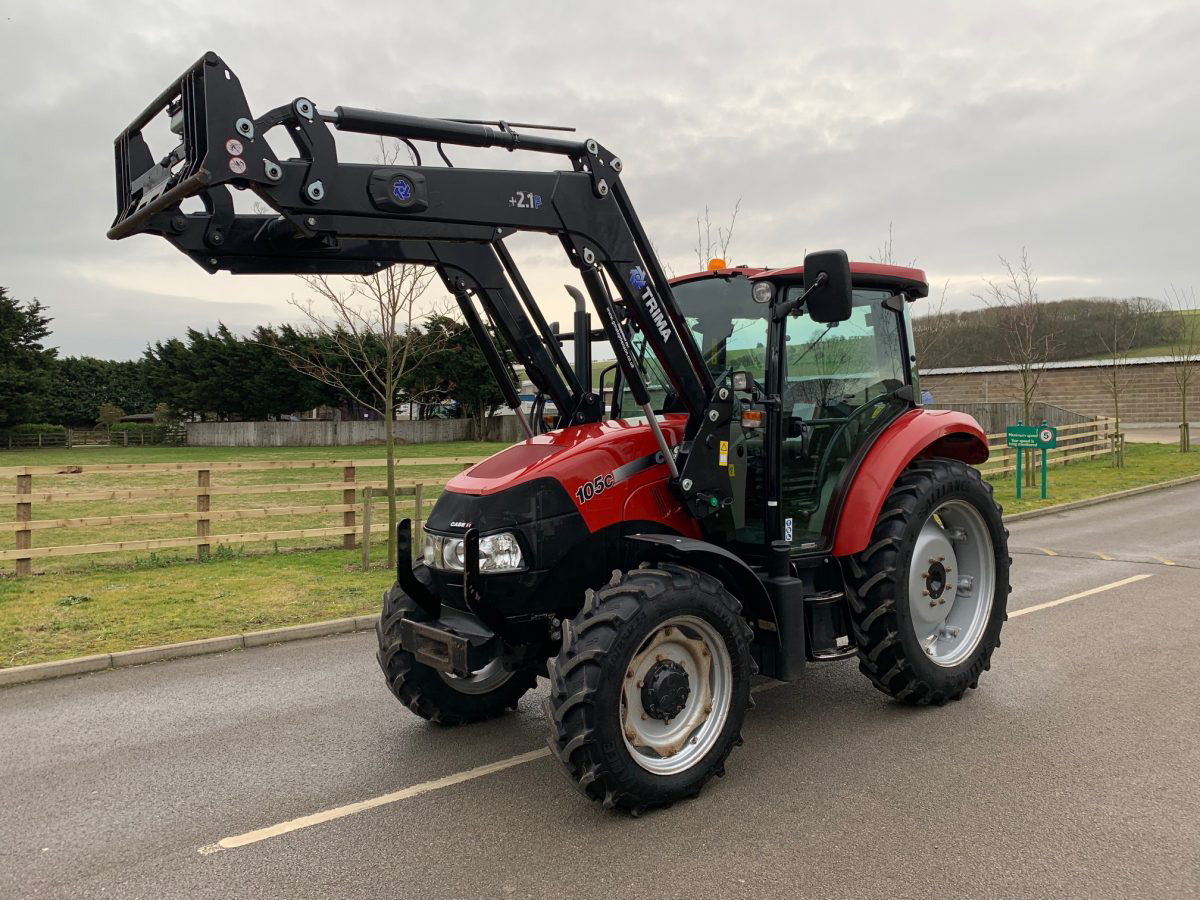

The 2015 Case IH Farmall 105C is a premium utility tractor powered by a 3.4-litre
4-cylinder FPT turbocharged engine
It is highly regarded as a versatile, heavy-duty loader tractor for livestock, mixed farming, and hay operations.
Engine and Performance
Engine Model: FPT (Fiat Powertrain Technologies) F5DFL413J
Cylinders / Displacement: 4 cylinders, 3.4 L (207 cubic inches)
Aspiration: Turbocharged, intercooled, Common Rail electronic fuel injection
Engine Power: 107 hp (79 kW) at 2,300 RPM
PTO Power: 91 hp (68 kW)
Emissions Standard: Tier 4A (using Cooled EGR and a Particulate Matter Catalyst, no AdBlue required)
Transmission and Drivetrain
Standard Transmission: 12x12 Mechanical Shuttle or Powershuttle
Optional Transmission: 24x24 Dual-Command (Hi-Lo powershift) or 20x20/40x40 with Creeper options
Drivetrain: 4WD standard (electro-hydraulic engagement) with optional 2WD in specific markets
Brakes: Wet multi-disc hydraulic brakes
Hydraulics and Hitch
Hydraulic System: Open-centre system with dual, dedicated pumps
Implement Pump Flow: 64 L/min (16.9 gpm)
Steering Pump Flow: 36 L/min (9.5 gpm)
Total Hydraulic Flow: 100 L/min (26.4 gpm)
Rear Hitch Type: Category II three-point hitch (available with electronic hitch control / EDC)
Rear Lift Capacity: 3,600 kg (7,936 lbs) standard (up to 4,400 kg / 9,700 lbs with optional assist rams)
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM
Dimensions & Capacities
Operating Weight: Approx. 3,900 kg (8,598 lbs) for 4WD Cab configuration
Wheelbase: 228 cm (89.9 inches)
Fuel Tank Capacity: 115 litres
Operator Station
Deluxe VisionView™ Cab, which includes air conditioning, heating, a high-visibility roof panel (ideal for loader work)
and an air-suspended seat. ROPS (open platform) configurations were also manufactured
Joystick Control
Trima 2.1P Loader
Ready to work
We can professionally arrange competitive delivery for any machine, to any address in Europe, Ireland, North Ireland and Scotland at very competitive rates with our own transport. We take the utmost care to ensure that your vehicle is transported in a safe and fast way.
For quotations or any queries please CONTACT US !
