Description

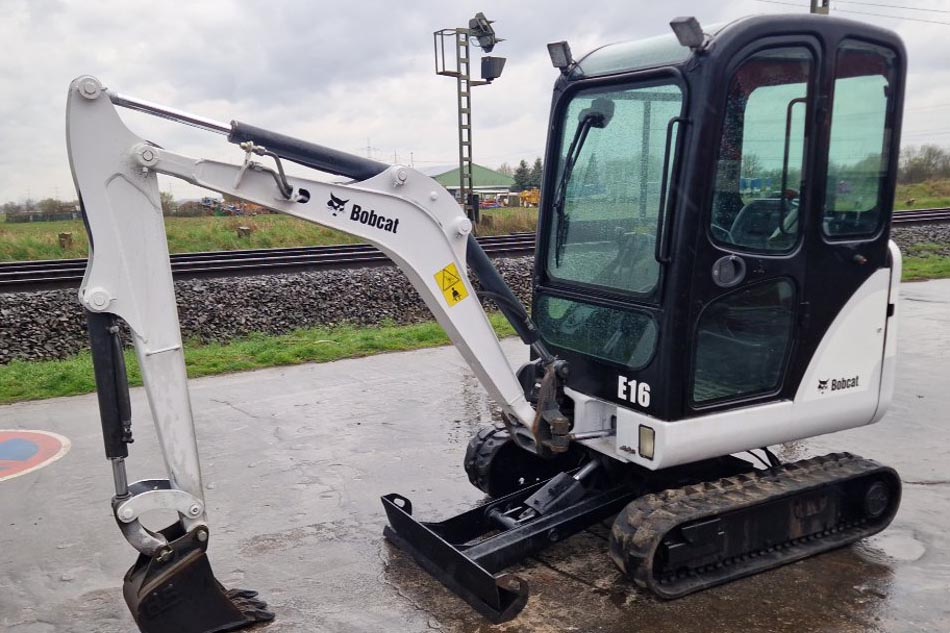

The Bobcat E16 (including the AEM and facelifted variants) is a conventional tail-swing (CTS) mini-excavator built between 2010 and 2015
Positioned in the 1.5–1.7 tonne class, it is highly valued for utility trenching, landscaping, and tight-access construction
Dimensions and Weight
Operating Weight (Heated Cab): 1,644 kg
Overall Transport Length: 3,925 mm
Overall Height: 2,171 mm (TOPS/cab height)
Undercarriage Width (Retracted): 980 mm (designed to navigate narrow gates and side alleys)
Undercarriage Width (Extended): 1,360 mm (extended hydraulically for heavy side-lifting stability)
Engine and Drivetrain
Engine Model: Kubota D722-E2B-BC-5-SI
Fuel Type: Diesel (Liquid Cooled)
Gross Power: 9.9 kW (13.3 HP) @ 2500 RPM
Displacement: 0.72 L (3-Cylinder)
Maximum Net Torque: 42.2 Nm @ 2200 RPM
Travel Speed: Two-speed travel system — Low: 2.9 km/h / High: 4.8 km/h
Operating Working Range
Maximum Digging Depth: 2,422 mm
Maximum Reach (Ground Level): 3,894 mm
Maximum Dump Height: 2,483 mm
Bucket Digging Force (ISO 6015): 16,640 N
Dipperstick (Arm) Digging Force: 9,560 N
Boom Swing Angle: 80° to the Left / 60° to the Right
Hydraulic System
Pump Setup: Dual piston pump combined with a third gear pump
Total Pump Capacity: 41.30 L/min
Auxiliary Hydraulic Flow: 30.0 L/min
Main Hydraulic System Relief Pressure: 227 bar
Core Standard Features
Hydraulic Track Adjustment: Smooth push-button widening system paired with fold-out blade extensions
Pilot Control Joysticks: Dual wrist-rest mounted electronic/hydraulic joysticks controlling the upper-structure slew and digging arm for fatigue-free operation
Dual-Acting Auxiliary Lines: Located right on the dipperstick with quick couplers to operate tools like hydraulic breakers or augers effortlessly
Ready To Work
