Description

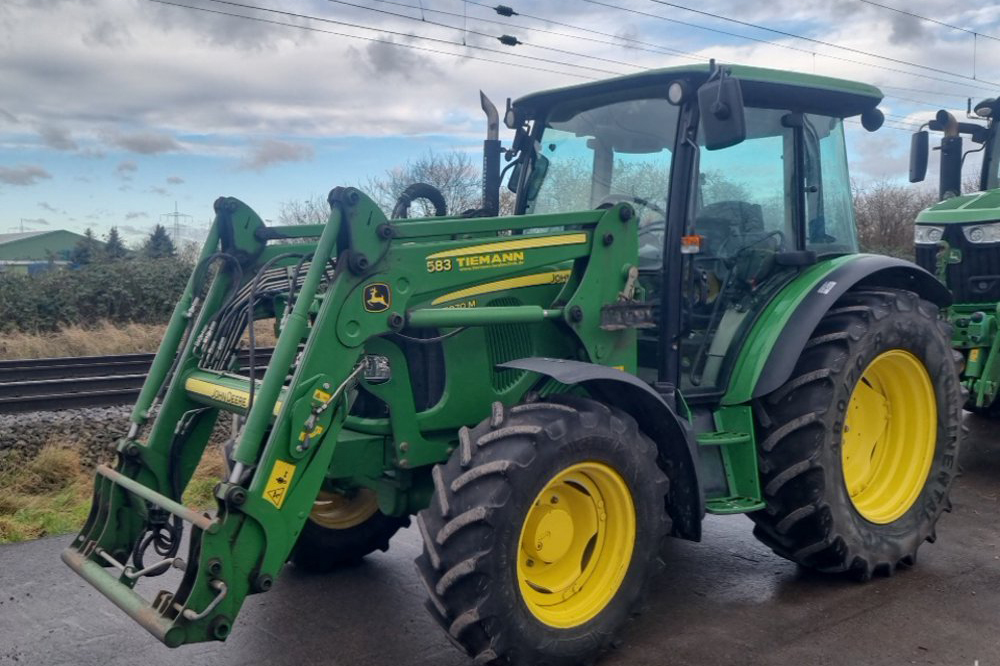

The 2012 John Deere 5070M is a highly reliable compact utility tractor powered by a 4.5-litre
4-cylinder John Deere turbocharged engine
Part of the heavy-duty 5M series, it features a full-frame design, making it an exceptionally durable choice for front loader work,
livestock farming, and municipal duties
Engine and Performance
Engine Manufacturer/Model: John Deere Power Systems (JDPS) PowerTech M (4045T)
Cylinders / Displacement: 4 cylinders, 4.5 L (4,525 cm³)
Aspiration: Turbocharged, mechanical fuel injection
Engine Power: 70 hp (51.5 kW) at 2,200 RPM
PTO Power: 56 hp (41.8 kW)
Emissions Standard: Stage III A / Tier 3
(strictly mechanical injection, entirely free from AdBlue or complex DPF filters)
Transmission and Drivetrain
Standard Transmission: 16x16 SyncReverser (mechanical shuttle, synchronized gears)
Premium Transmission: 16x16 or 32x16 PowrReverser (clutchless, electro-hydraulic shuttle shift on the steering column)
Drivetrain: 4WD standard
Clutch: Wet multi-disc hydraulic clutch
Top Speed: 40 km/h (25 mph)
Hydraulics and Hitch
Hydraulic System: Open-centre system with dedicated dual gear pumps
Implement Pump Flow: 50 L/min (13.2 gpm) standard (optional high-flow 70 L/min / 18.5 gpm pump was available)
Steering Pump Flow: 24 L/min (6.3 gpm)
Total Hydraulic Flow: Up to 94 L/min (24.8 gpm) with high-flow setup
Rear Hitch Type: Category II three-point linkage with mechanical draft control
Rear Lift Capacity: 3,600 kg (7,936 lbs) maximum at ball ends
Rear PTO Speeds: Independent 540 / 540E / 1,000 RPM
Dimensions and Capacities
Operating Weight: Approx. 3,900 kg (8,598 lbs) for a standard 4WD Cab version
Wheelbase: 218 cm (85.8 inches)
Overall Height: 257 cm (101.2 inches) to the top of the standard cab
Fuel Tank Capacity: 130 litres
Operator Station
Standard Cab: Equipped with John Deere’s TechCenter cab, offering excellent 360-degree visibility
a flat operator platform, mechanical control levers, heating, and optional air conditioning
Very easy to operate / Ready to work
