Description

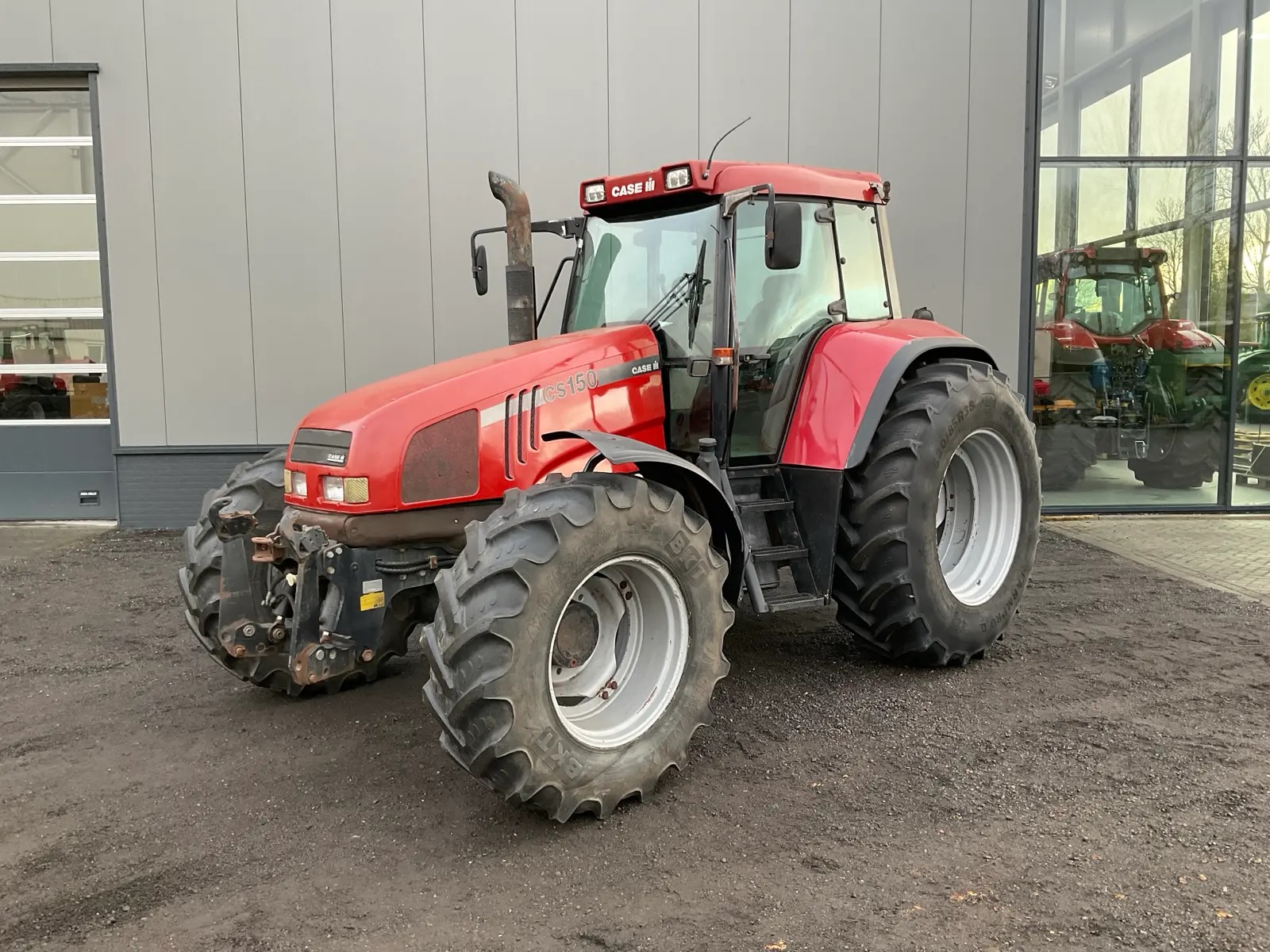

The 2003 Case IH CS150 is a 4WD agricultural tractor
6-cylinder Sisu turbo-diesel engine
Engine and Performance
Manufacturer/Model: Sisu 620.93
Cylinders: 6 cylinders, turbocharged
Displacement: 6,597 cm³ (6.6 L)
Max Power: 150 hp (110 kW) at 2,100 RPM
Torque: 577 Nm at 1,400 RPM
Transmission and Speeds
Transmission Type: Powershift (4-step powershift with hydraulic shuttle)
Gears: 24 forward and 24 reverse
Top Speed: 40 km/h or 50 km/h
Hydraulics and Lift
Hydraulic Flow: 80 L/min standard (up to 115 L/min load-sensing optional)
Hydraulic Pressure: 185–205 bar
Lift Capacity: Up to 8,830 kg – 9,970 kg
PTO Speeds: 540 / 750 / 1000 / 1400 RPM (or 540/540E/1000/1000E options)
Dimensions and Weight
Operating Weight: Approx. 5,420 kg (11,651 lbs)
Wheelbase: 280 cm (110.6 inches)
Height with Cab: 289 cm – 294 cm
Standard Tyres (4WD): Front 540/65 R28, Rear 650/65 R38
Cabin and Features
Noise Level: 72 dB
Equipment: Air conditioning, air-suspension seat, compressed air braking system, and front linkage/PTO
